Tektronix MSO4104 Demo Instruction Manual

Getting Started with th e Tektronix 4000 Series
Hint: To move the cursors faster, turn off
fine mode by pushing the Fine button,
if lit, on the front panel between the two
multipurpose knobs.

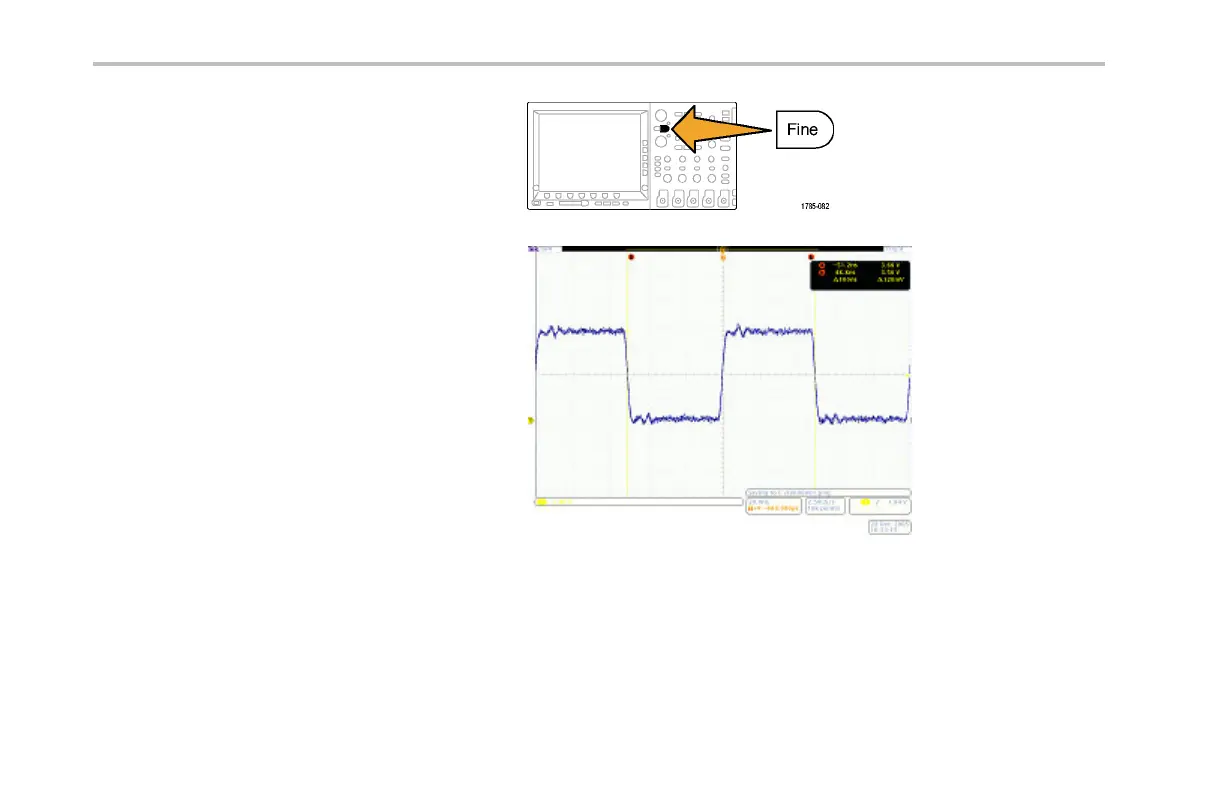

3. Place o ne cursor at the midpoint of the
first falling edge. Place the other cursor at
the midpoint of the second falling edge to
measure the signal’s period. The cursor
readout should show a difference between
the cursors of approximately 100 ns.
Hint: To move the cu rsors more slowly, turn
the fine mode back on by pushing the Fine
button, if unlit, on the front panel between
the two multipurpose knobs.
