Getting Started with th e Tektronix 4000 Series
Demo I: Acquiring a Signal

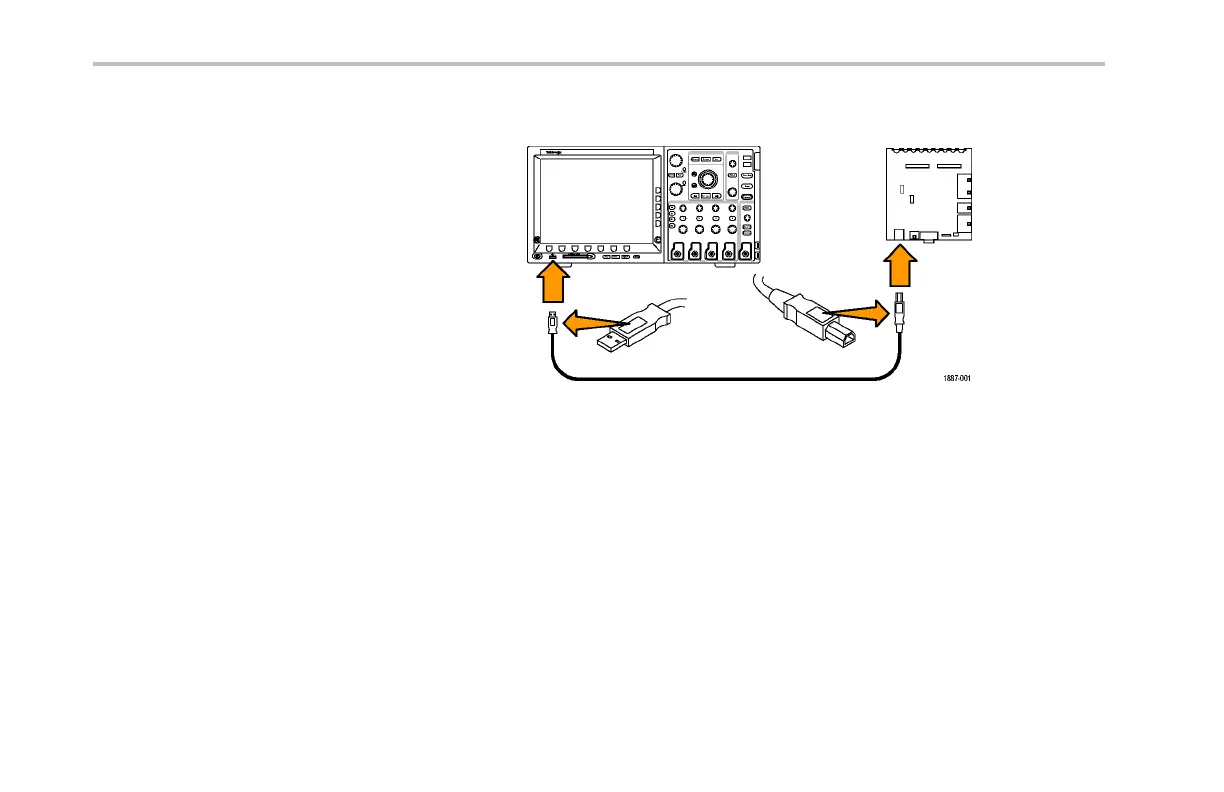

1. Connect the host side of the USB cable to
the USB port on the lower-left corner of the
oscilloscope front panel — or to either of
the two USB host ports on the rear panel.
2. Connect the othe r end of the cable to
the device port on the demo board. (See
page 102, Operating the Demo Board.)
3. Confirm that the LED labeled USB POWER
is lit on the demo board.
2 Tektronix 4000 Oscilloscope De mo Instruction Ma nual
