Getting Started with the Tektronix 4000 Series
Demo VI: Using Cursors

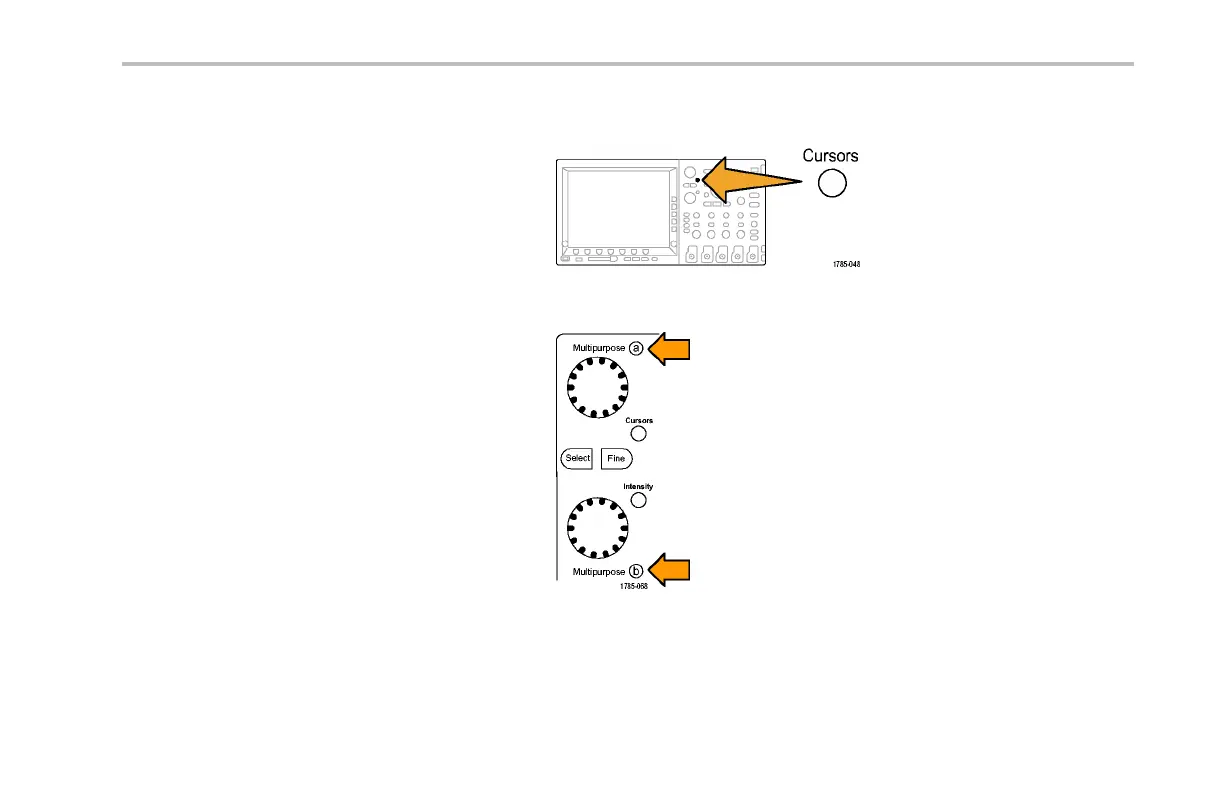

1. Push the front-panel Cursors button.
Two vertical ba r cursors now appear in
the graphic above the graticule. The
corresponding cursor readout displays
the time of each cursor relative to the
trigger and amplitude along with the deltas
between the cursors.
2. Using the multipurpose a and b knobs,
bring the cursors on screen.
Tektronix 4000 Oscilloscope Demo In struction Manual 11
