Giving Demos of MSO4000 Features
Demo XXII: Discovering Multi-channel Setup and Hold
The MSO4000 can h unt for any setup and h old time violation you define on a ny and all channels in your bus.

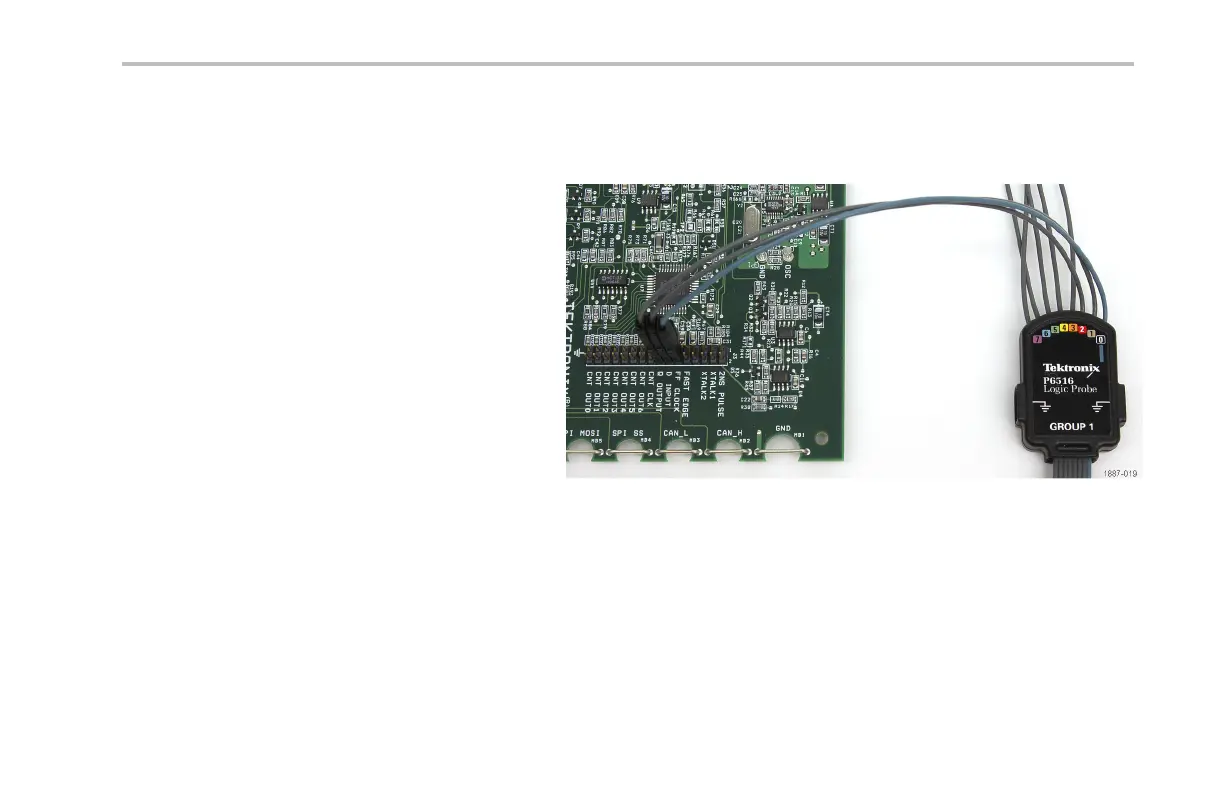

1. Connect the P6516 digital Group 1 D0
connector to the demo board, as follows:
D2 — Q OUTPUT
D1 — D INPUT
D0 — FF CLOCK
Tektronix 4000 Oscilloscope Demo In struction Manual 89
