Giving Demos of M SO400 0 Features

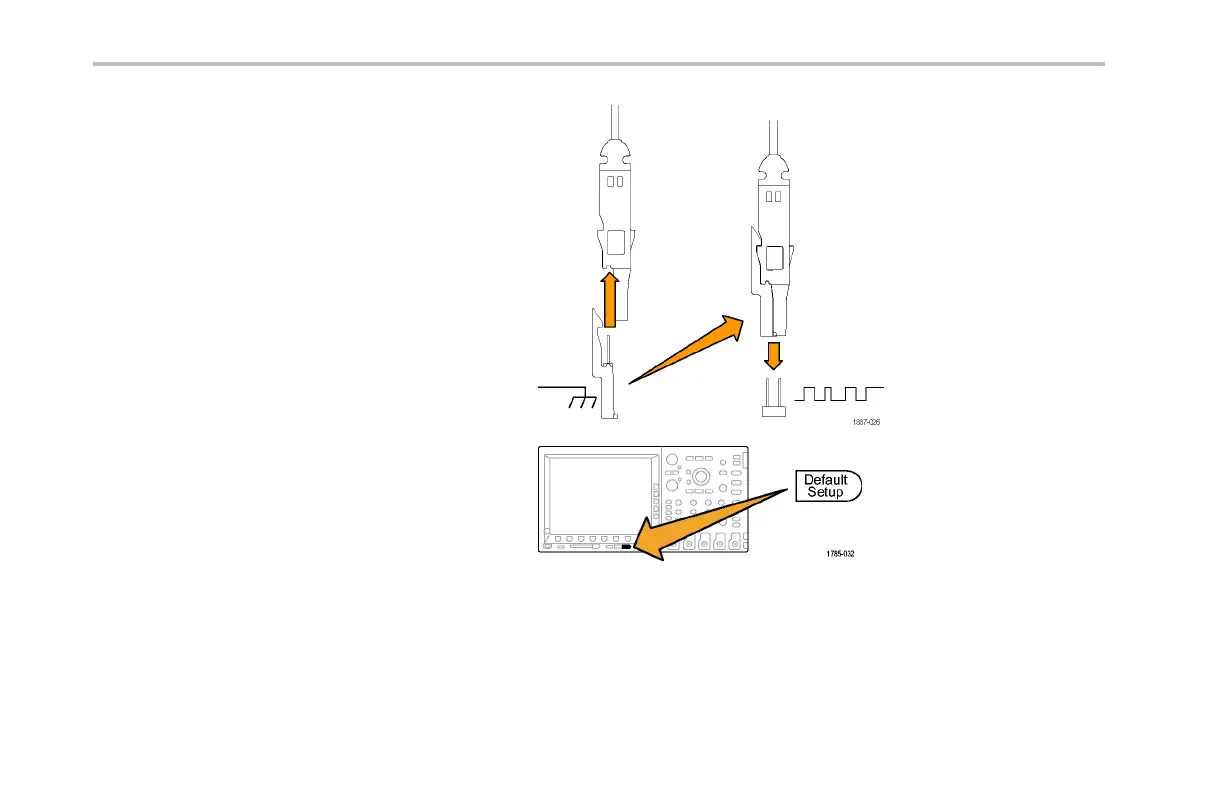

Remember to prop erly ground all the probe pins
using the flush mount adapter.
2. Push Default Setup.
3. Push the front-panel channel 1 button as many
times as n eeded (e.g. two times) to remove
the chan nel 1 waveform from the display.
90 Tektronix 4000 Oscilloscope Demo Instruction Manual
