Giving Demos of Advanced Tektronix 40 00 Features

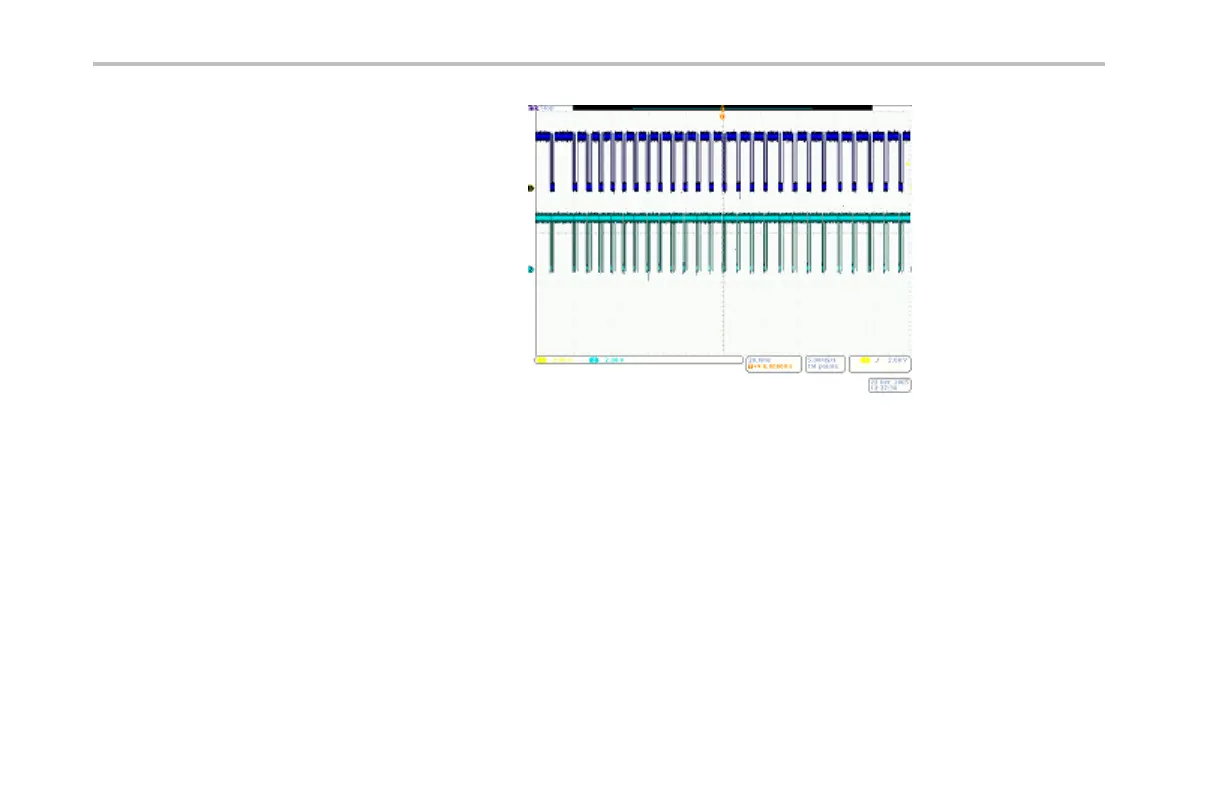

You a re now looking at the clock (yellow
ch1) and data (blue ch2) lines of an I
2
C
bus.
Hint: If the waveforms do not look like the
display to the right, go back to step 1 and
confirm th at you connected both probes to
the correct pins on the demo board.
28 Tektronix 4000 Oscilloscope Demo Instruction Manual
