• To prevent electrostatic damage to components whenever you work on the instrument, wear properly-grounded electrostatic prevention
wrist and foot straps, and work in a tested antistatic environment on an antistatic mat.
•
Remove the rear grill and case.
Procedure:

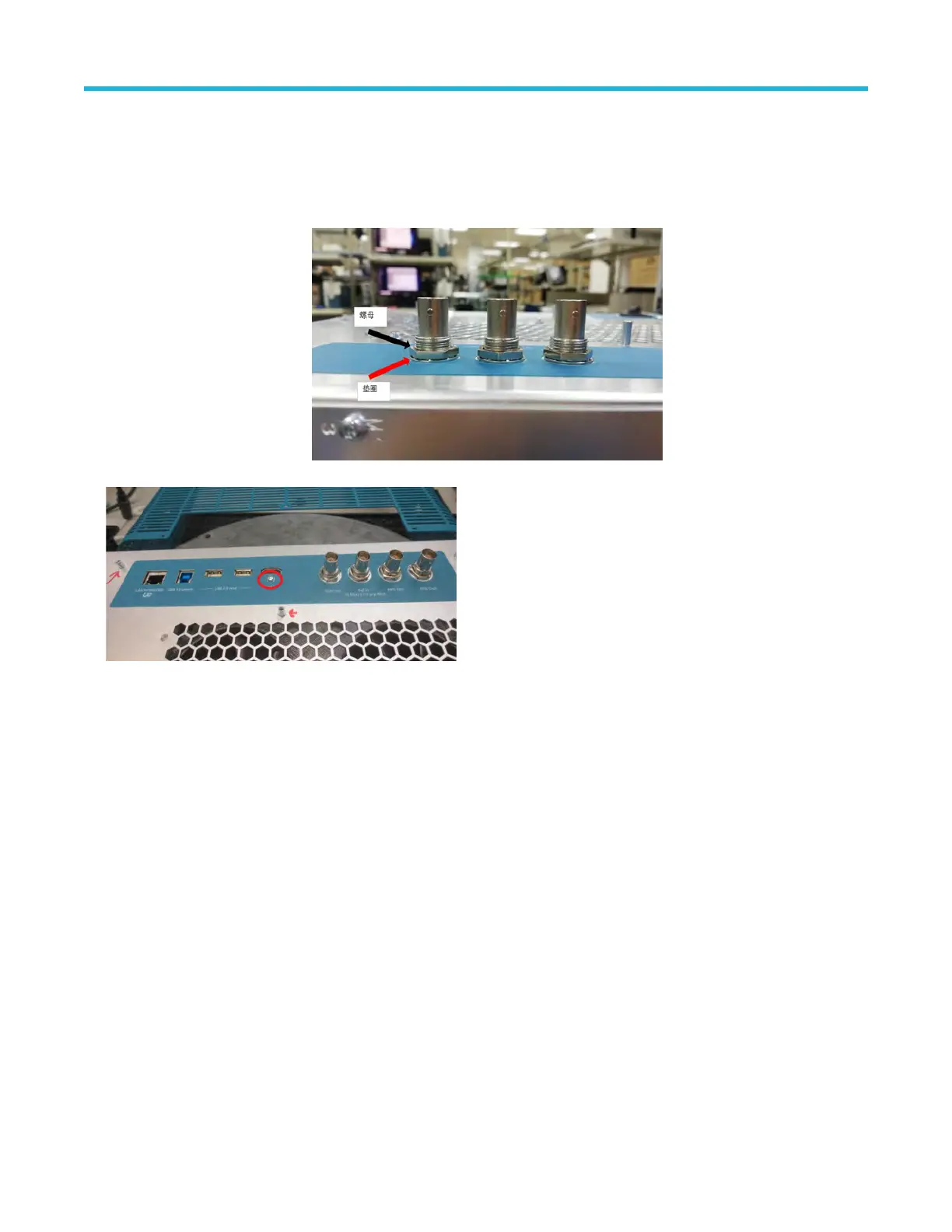

1. Use a 9/16" socket to remove BNCs with three washers and three nuts. Black arrow is for nut and red arrow is for washer.
2. Use a screwdriver with a with T
-10 Torx tip to remove the 25 screws securing the rear chassis to the front chassis.
Maintenance
4 Series MSO (MSO44, MSO46) Service 22

Tektronix MSO44 Specifications

General

Bandwidth	200 MHz, 350 MHz, 500 MHz, 1 GHz
Analog Channels	4
Operating Temperature	0 °C to +50 °C
Sample Rate	6.25 GS/s
Record Length	62.5 Mpoints
Input Impedance	1 MΩ ±1%, 50 Ω ±1%
Vertical Resolution	12 bits
Waveform Capture Rate	Up to 500, 000 wfm/s
Maximum Input Voltage	5 VRMS (50 Ω)
Probe Interface	TekVPI
Digital Channels	16 (optional)
