Tektronix MSO44 User Manual

Front chassis assembly with acqusition board and processor board

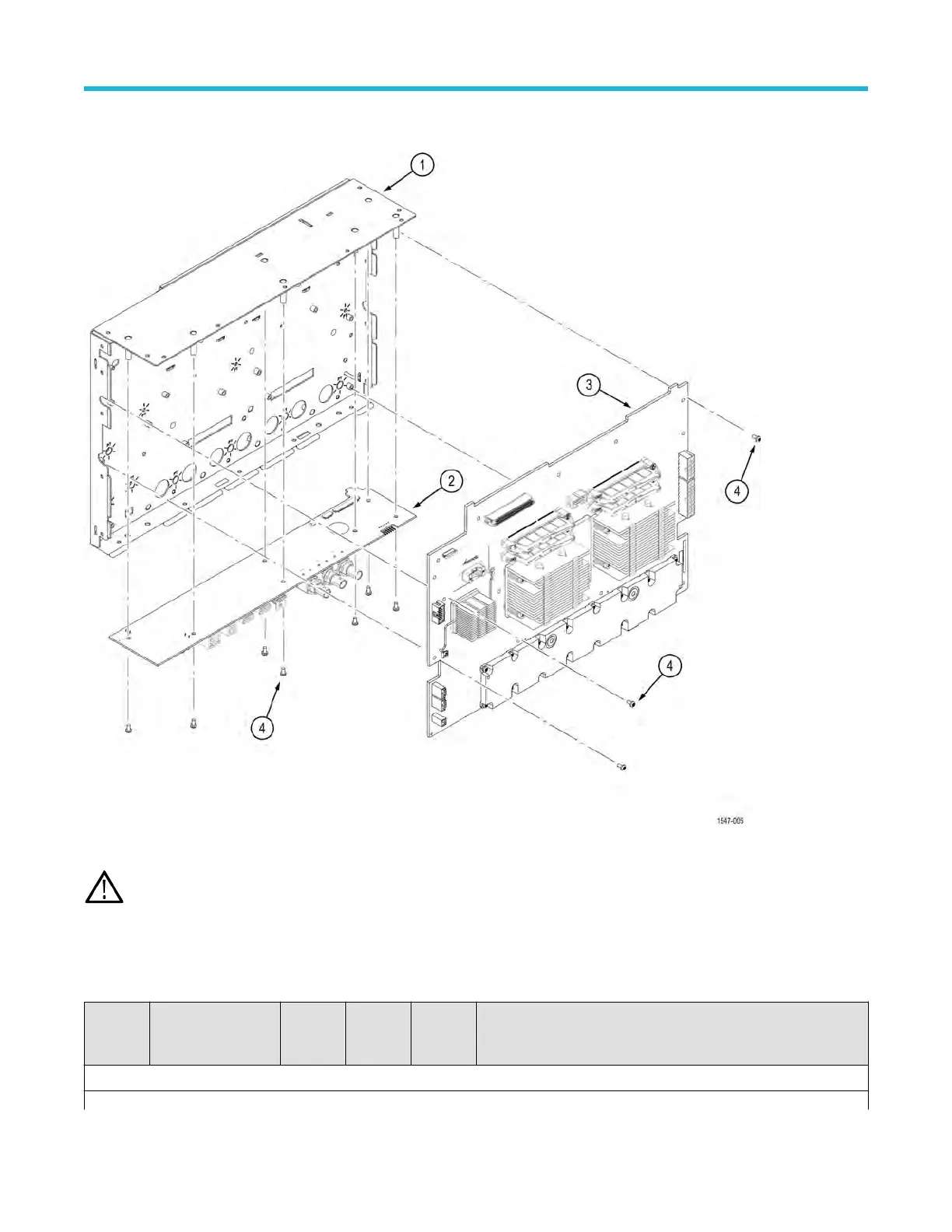

Figure 7: Front chassis assembly with acqusition board and processor board- exploded view
Note: None of the components listed are user-replaceable. Return the instrument to your nearest T
ektronix Service Center to
repair or replace any internal components or assemblies in this diagram.
Table 10: Front chassis assembly with acqusition board and processor board
Fig. &
index
number
Tektronix part
number
Serial no.
effective
Serial no.
discont'd
Qty Name & description
Figure 7 on page
42
Table continued…
Replaceable parts
4 Series MSO (MSO44, MSO46) Service 42

Tektronix MSO44 Specifications

General

Bandwidth	200 MHz, 350 MHz, 500 MHz, 1 GHz
Analog Channels	4
Operating Temperature	0 °C to +50 °C
Sample Rate	6.25 GS/s
Record Length	62.5 Mpoints
Input Impedance	1 MΩ ±1%, 50 Ω ±1%
Vertical Resolution	12 bits
Waveform Capture Rate	Up to 500, 000 wfm/s
Maximum Input Voltage	5 VRMS (50 Ω)
Probe Interface	TekVPI
Digital Channels	16 (optional)
