Tektronix MSO44

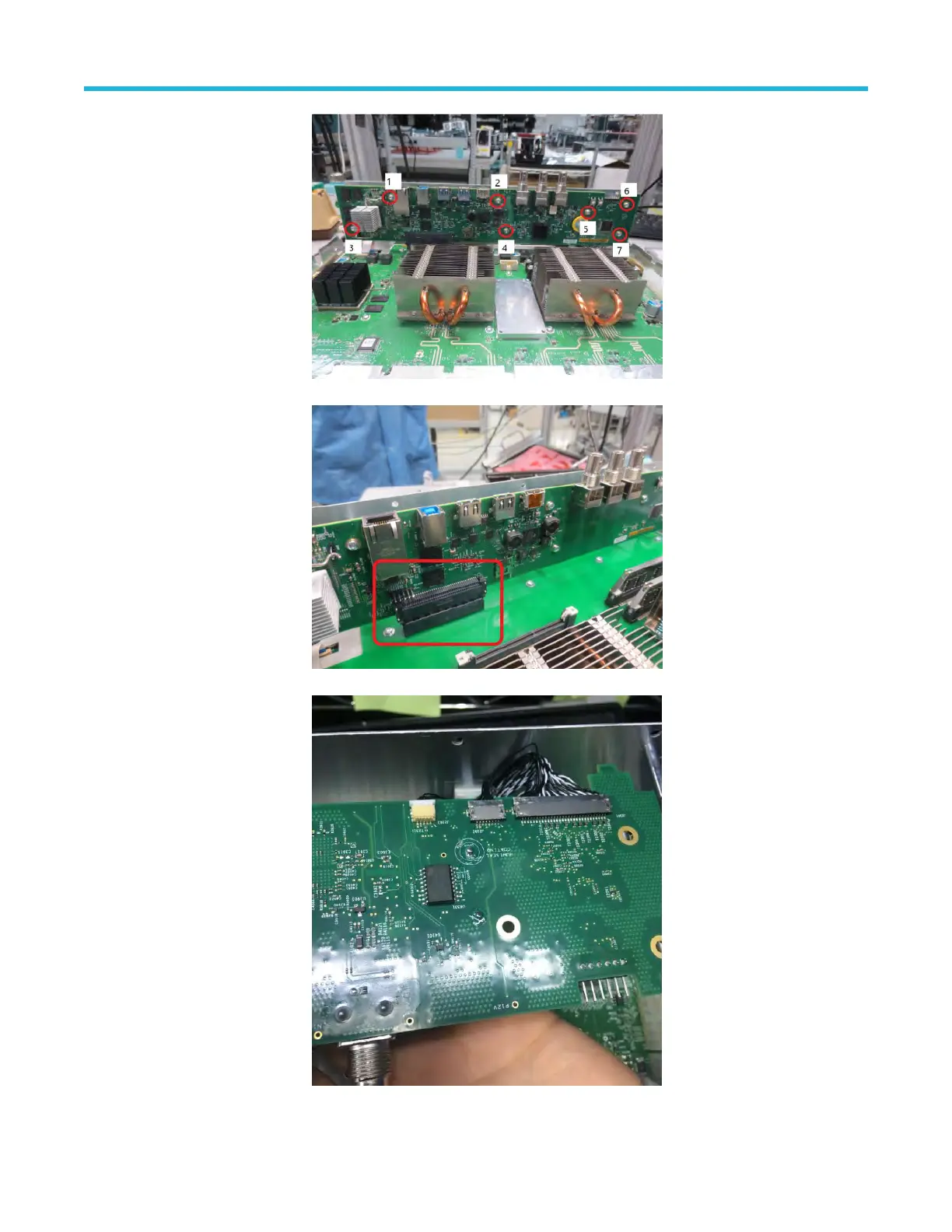

2. Carefully disconnect the processor board from the main board.
3. Disconnect the display cable from the processor board as shown below
.
4. T
o reinstall, reverse the above steps. Tighten the T-10 Torx screws to 0.65 N·m when reinstalling.
Maintenance
4 Series MSO (MSO44, MSO46) Service 29
