Saving and Recal

ling Inform ation

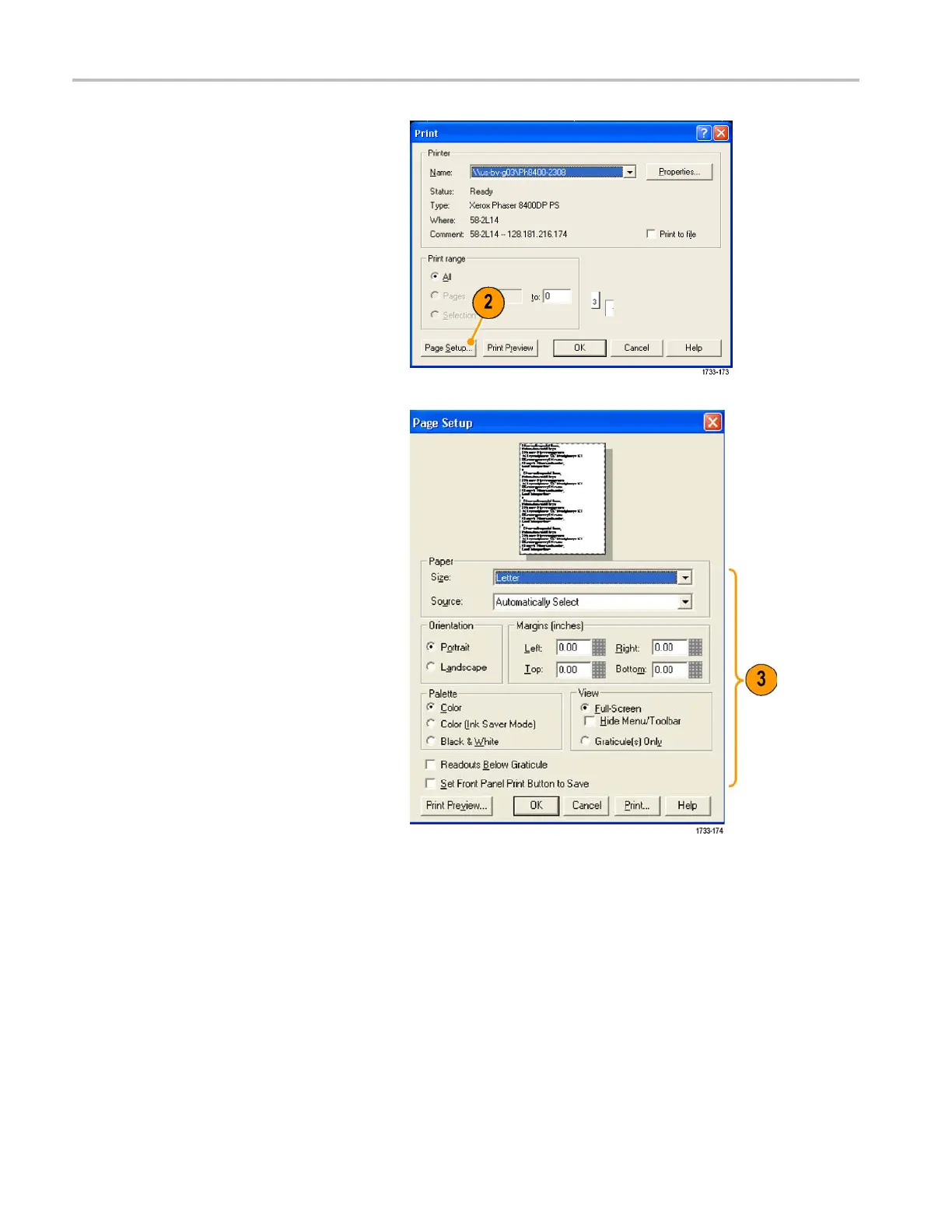

Your Print and Page Setup dialog boxes will

depend on the printer you are using.

2. Click Page Setup....

3. Select the printing parameters.

156 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
