Pinpoint Trigge
rs

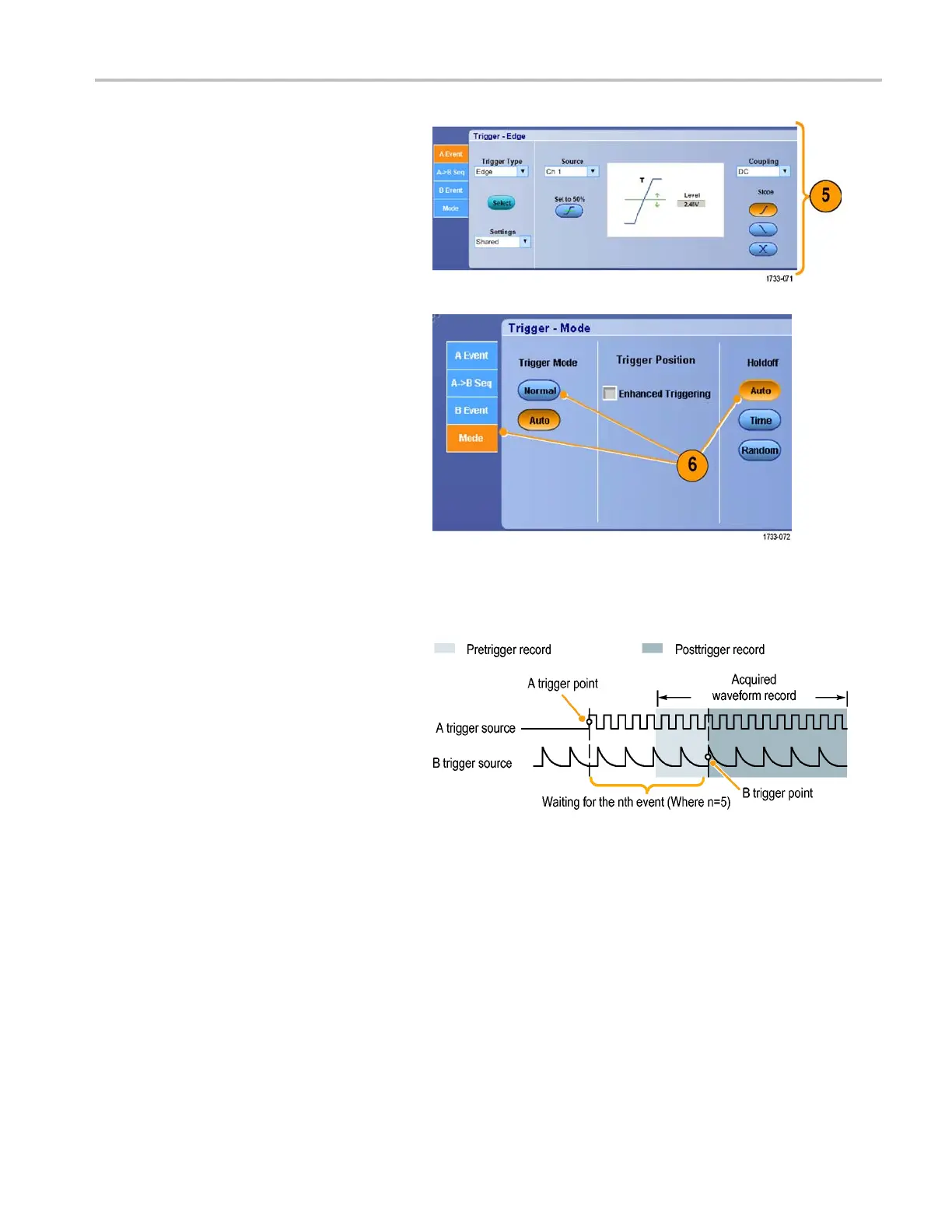

5. Set the B trigger characteristics in the B
Event (Delayed) tab.
6. Select Normal Trigger Mode and Auto
Holdoff in the Mode tab.
Trigger on B Event
The A trigger arms the instrument.
Posttrigger acquisition starts on the nth B
event.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 75
