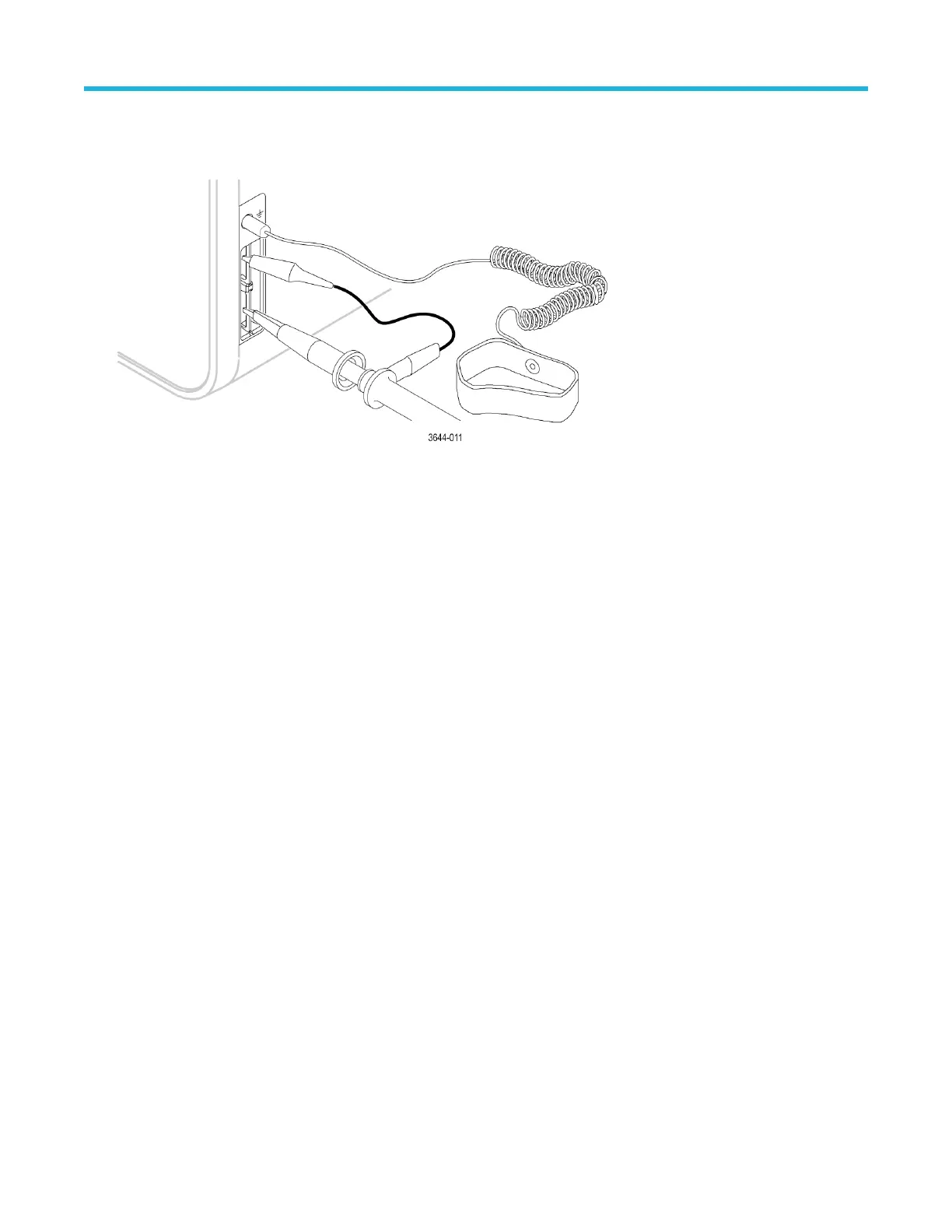

The Probe Compensation connections provide a ground connector (upper tab) and 1 kHz square wave source (lower tab) for
adjusting the high-frequency response of a passive probe (probe compensation). The oscilloscope uses this signal to automatically
compensate supported probes, including the ones that ship with the product.
8. USB Host ports (USB 3.0 and 2.0): USB ports are located at the lower right corner of the front panel, and on the rear panel.
Connect USB flash drives to which you can save or recall data (such as instrument software updates, waveforms, settings, and
screen captures), or connect peripheral devices such as a mouse or keyboard.
9. FlexChannel probe connectors: FlexChannel connectors support all TekVPI+ and TekVPI measurement probes, BNC passive
probes, the TPL058 FlexChannel Logic Probe, and BNC cables. You connect most probes simply by pushing them into the connector
until the probe seats with a click.
10. Aux In auxiliary trigger input connector. A connector to which you can connect an external trigger input signal. Use the Aux In trigger
signal with the Edge trigger mode.
Getting acquainted with your instrument
5 Series B Mixed Signal Oscilloscopes MSO54B, MSO56B, MSO58B Quick Start Manual 25
