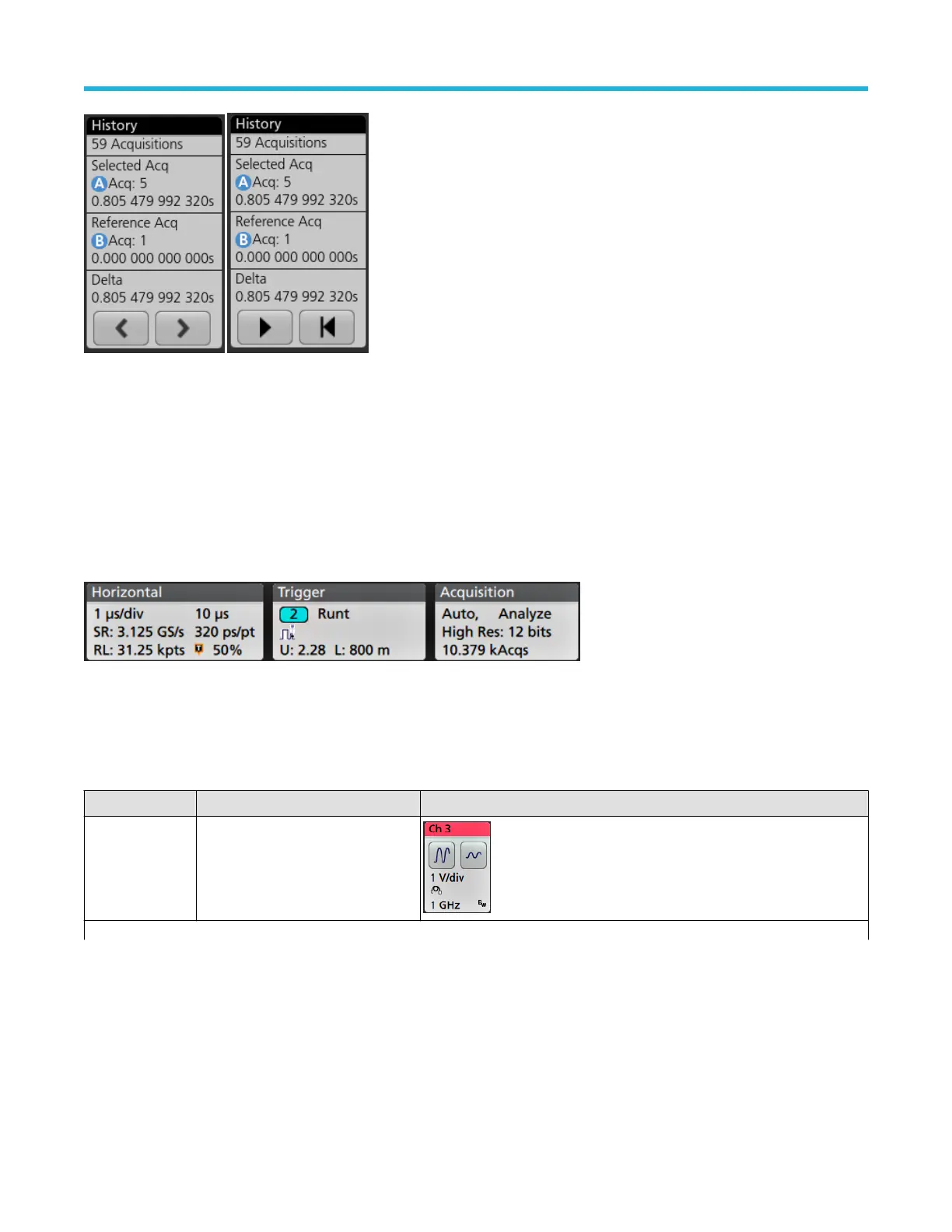

The Reference acquisition readout shows the timestamp when the acquisition occurred in time in history. It also displays the delta between
the Selected acquisition and the Reference acquisition timestamps.
There are two ways to delete the History badge.
• Right-click the badge and select Disable Acquisition History.
• Flick the badge off the right edge of the display to remove it from the Results bar. Flicking left from the right edge of the Results bar
recovers the badge. Badge recovery is only possible within 10 seconds of removal.
System badges
System badges (in the settings bar) display the main Horizontal, Acquisition, and Trigger settings. You cannot delete System badges.
Double-tap a System badge to open its configuration menu.
The Horizontal badge also has Scale buttons, shown by single-tapping the badge. Use the Horizontal Scale buttons to increase or
decrease the horizontal time setting.
Common badge actions
Action Result Example
Single tap Immediate access controls (Scale,
Navigation).
Table continued…
Getting acquainted with your instrument
MSO58LP 5 Series MSO Low Profile Quick Start Manual 35
