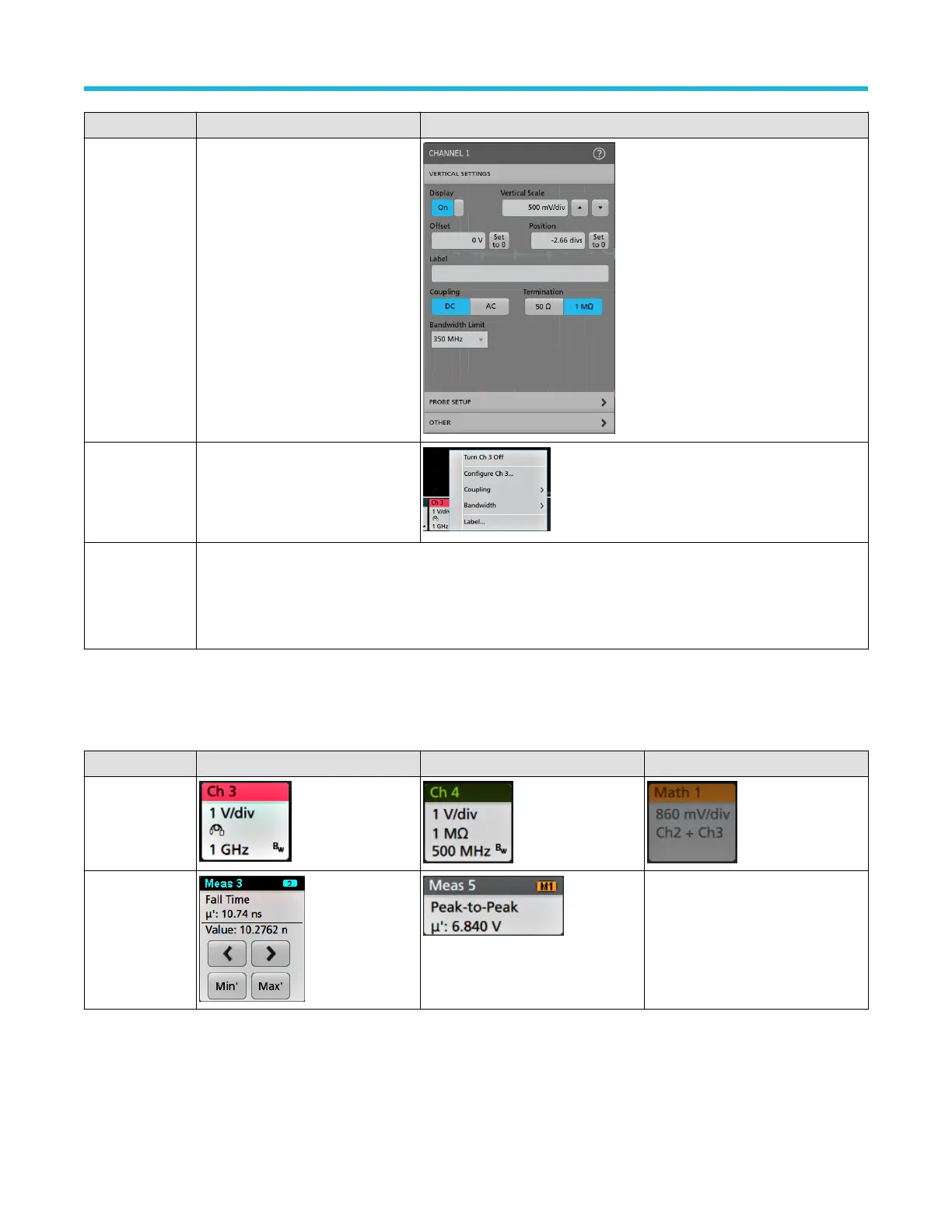

Action Result Example
Double tap Configuration menu with access to all
settings for the badge.
Touch and hold Right-click menu with single tap
access to common actions. Typical
actions include turning off a channel
and deleting a measurement or
search badge.
Flick Flick the badge off the bottom edge of the display to remove it from the Settings bar.
Flick the badge off the right edge of the display to remove it from the Results bar.
Flick from the right or bottom edge to recover a removed badge. This action is only possible within 10 seconds of
badge removal.
Badge selection status
The appearance of a badge indicates its selection status (selected or unselected), or if a measurement needs to be deleted to close a
channel or waveform badge.
Badge type Selected Unselected Turned off or in use
Channel or
Waveform
Measurement N/A
A dimmed Channel badge means the screen waveform is turned off (but not deleted). A dimmed Waveform badge means that the
waveform display is turned off, or it is being used as a source by a measurement and cannot be deleted until the measurement is deleted.
Getting acquainted with your instrument
36
