Mid-plane chassis

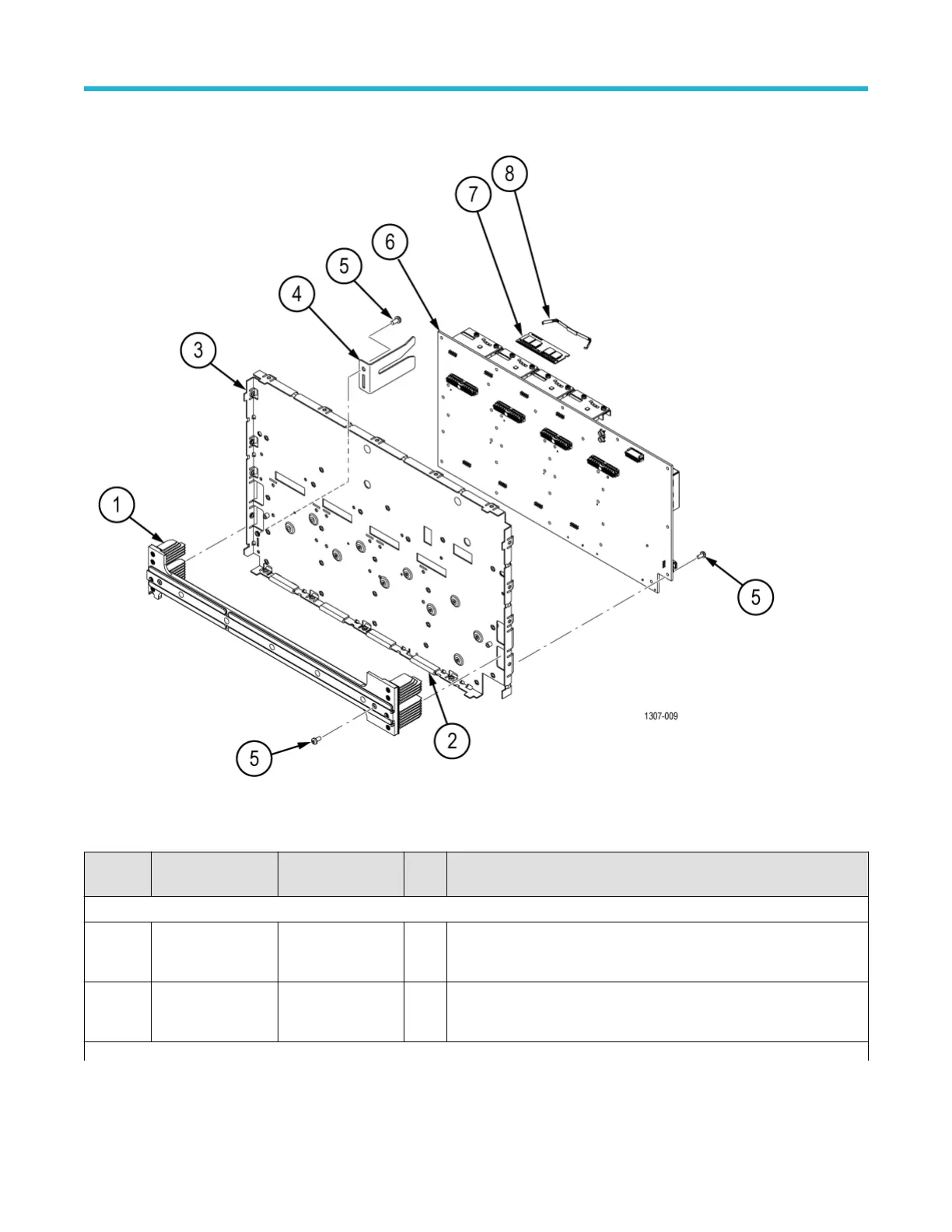

Figure 7: Mid-plane chassis exploded view
T
able 9: Mid-plane chassis
Index
number
T
ektronix part
number
Serial no. effective
Qty
Name & description
Figure 7
on page 44
-1
214-5469-XX
1
HEA
TSINK, AFE 4-8 CHANNEL
Return the instrument to T
ektronix for service.
-2
348-2298-XX
B020000 and above
C040000 and above
4
GASKET
, CONDUCTIVE FOAM W/PSA 12MM X 29MM X 1.5MM THICK
T
able continued…
Replaceable parts
5 Series MSO Service Manual MSO54, MSO56, MSO58
44
43
45
