Set up a MIL-1553 serial bus
NOTE. MIL-STD-1553 serial bus setup is available only on instruments with the SR-AERO option.

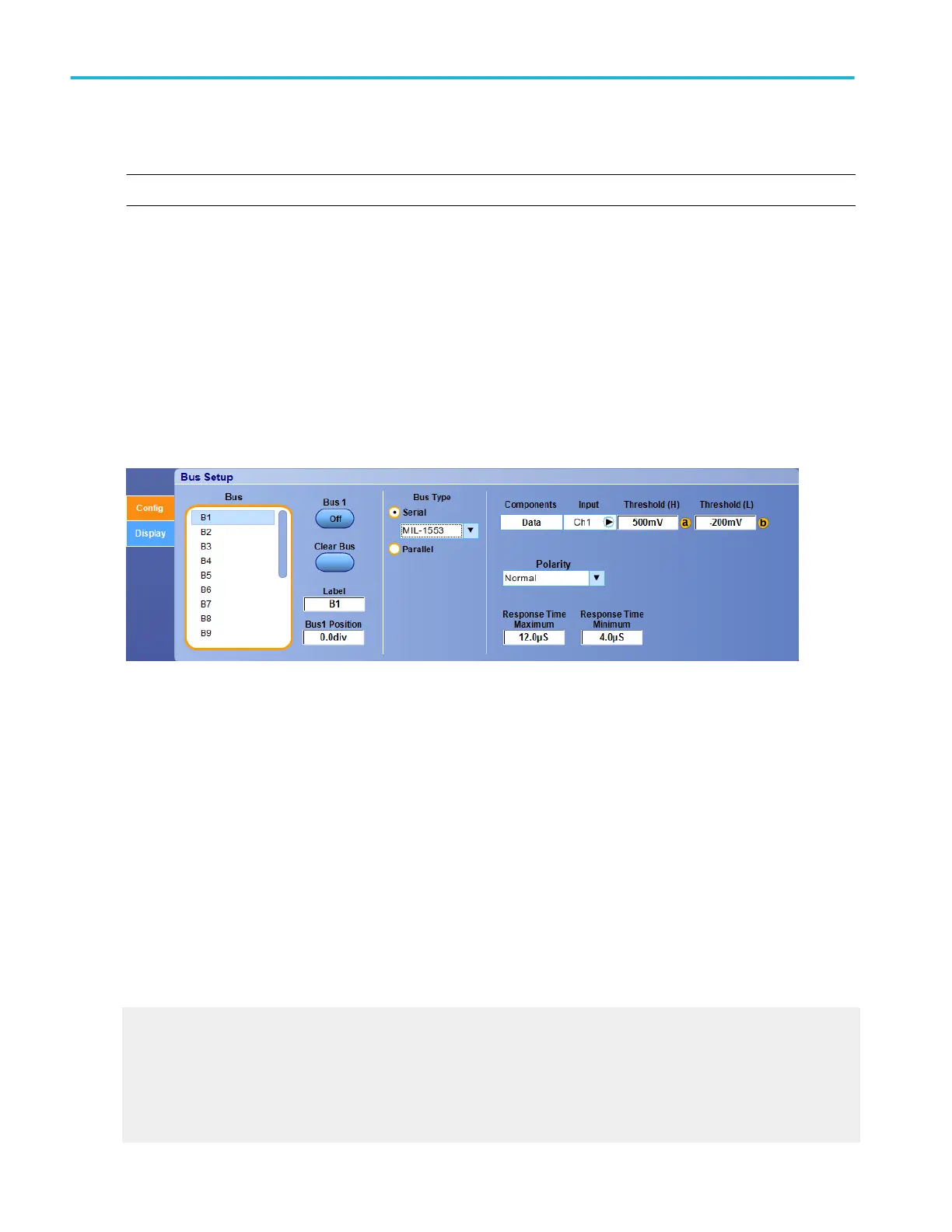

From the Bus Setup window, select Serial from the Bus Type list and then select the MIL-1553 Serial bus type.
For information on the controls, click the buttons.
■
Bus List
■
Display & Clear
■
Label
■
Position
■
Serial Input
■
Serial Threshold
To use
■
To change the input for a component, click the Input and select a channel from the cascading lists.
■
To set the serial bus type, click the Serial Bus Type entry box and select from the drop-down list.
■
To change a voltage threshold level, click the Threshold entry box and use the keypad to enter a value or use the
multipurpose knobs to select a voltage level.
■
To select the polarity, click the Polarity and select the polarity from the drop-down list.
■
To change the response time maximum and minimum, click a Response Time entry box and use the keypad to enter a
value or use the multipurpose knobs to select a time.
Behavior
The instrument changes the components and voltage threshold levels, and uses those to decode the selected bus.
What do you want to do next?
Learn more about bus setups.
Learn about bus configuration.
Learn about digital setups.
Learn how to set up an I2C serial bus.
Learn how to set up an SPI serial bus.
Bus setups
132 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
