Behavior
For the Data component:
■
Normal causes the instrument to decode signals at a high level as a binary 1.
■
Inverted causes the instrument to decode signals at a high level as a binary 0.
What do you want to do next?
Learn more about bus setups.
Learn about bus configuration.
Learn about digital setups.

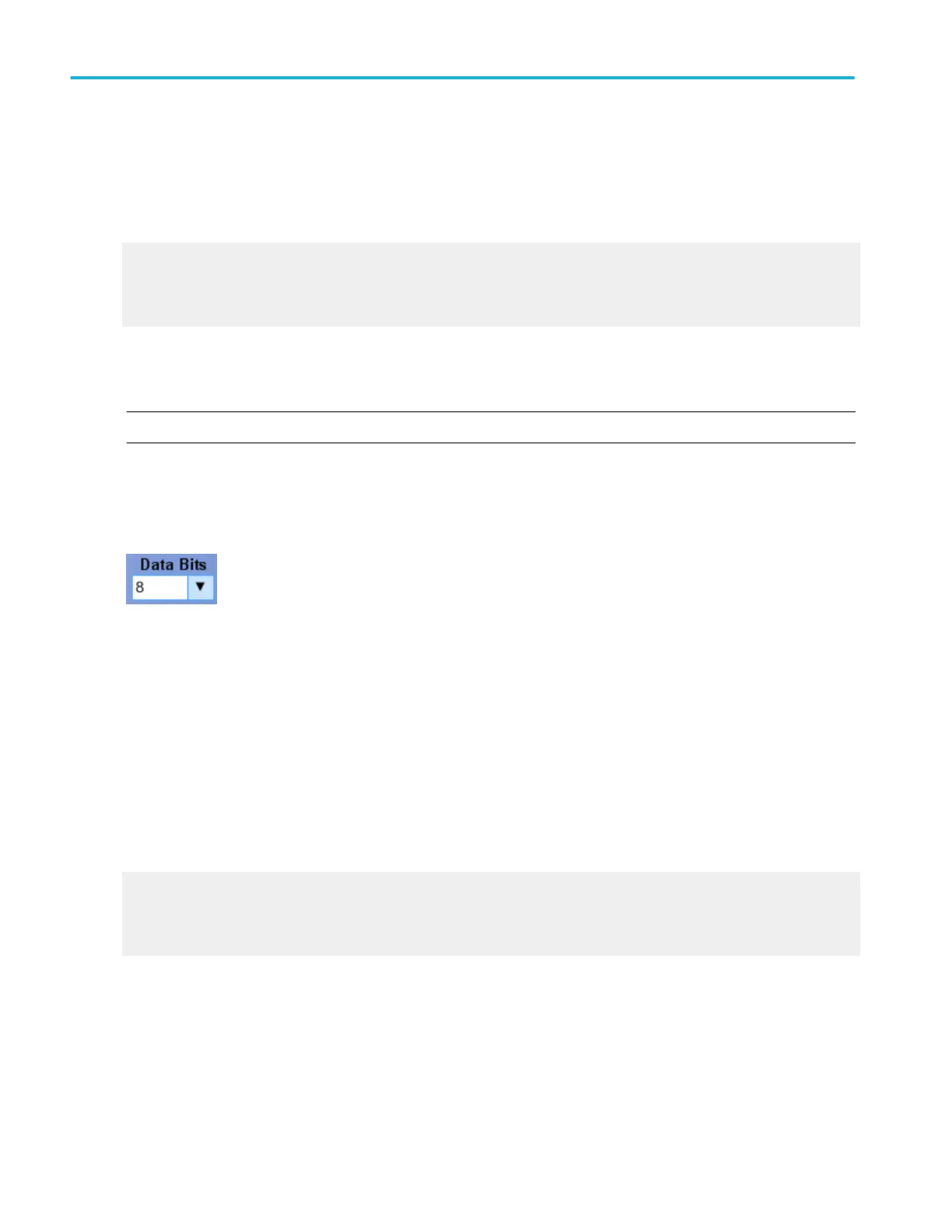

Select the RS-232 bus data bits
NOTE. The RS-232 Bus Data Bits option is available only on instruments with option SR-COMP.
From the Bus Setup window, select the Select tab and the RS-232 Serial bus type.
To use
■
Scroll through the Bus list and select the RS-232 bus to configure.
■
Click the Data Bits box and select the data bits from the drop-down list.
Behavior
You have the option to set the number of data bits in a frame for RS-232 bus to:
■
7.
■
8, the default.
■
9.
What do you want to do next?
Learn more about bus setups.
Learn about bus configuration.
Learn about digital setups.
Bus setups
142 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
