Confine automatic measurements only to the displayed frame.

■

Overlay multiple frames for easy comparison.

FastFrame is not compatible with the following features or modes:

■

Equivalent Time

■

Histograms

■

Fast Acquisitions

■

Average

■

Envelope

What do you want to do next?

Learn about the frame setup controls.

Learn more about the Selected Frame controls.

Learn about the reference frame and time stamps.

Learn how to set up the instrument for FastFrame operation.

Learn some tips for using FastFrame.

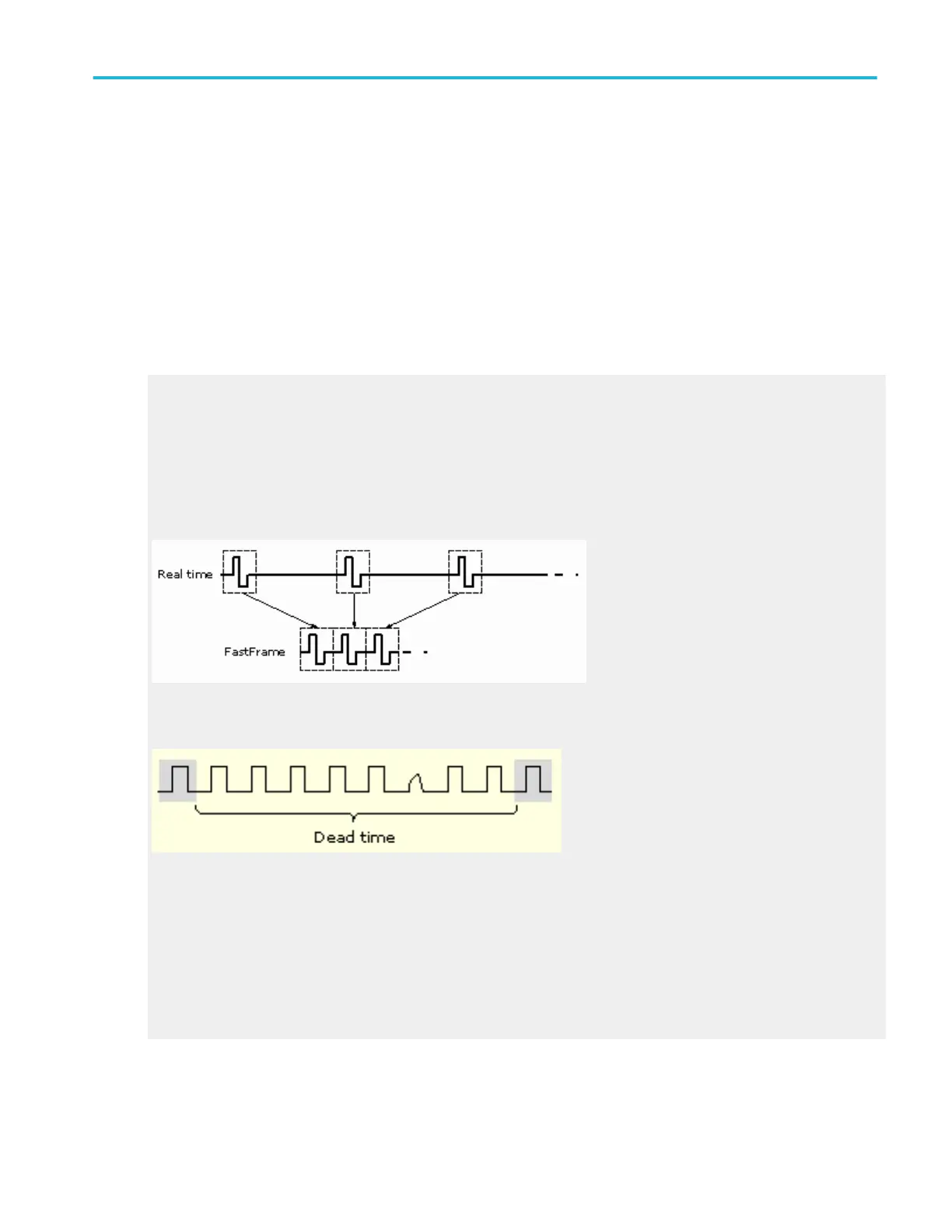

FastFrame acquisitions

Dead time

Dead time is the time that the instrument requires to process an acquisition.

The instrument cannot acquire any new data until the previous data has been processed. If dead time is long, the instrument can

miss acquiring infrequent events.

Frame

A frame is a segment of the entire data record. When used with FastFrame, each segment contains all of the data of a single

acquisition. Each captured event is stored sequentially in its own frame. Frames appear in the order they were captured.

Time stamps

Time stamps are a convenient way of measuring the time between triggers when using FastFrame.

Horizontal and acquisition setups

DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 199
