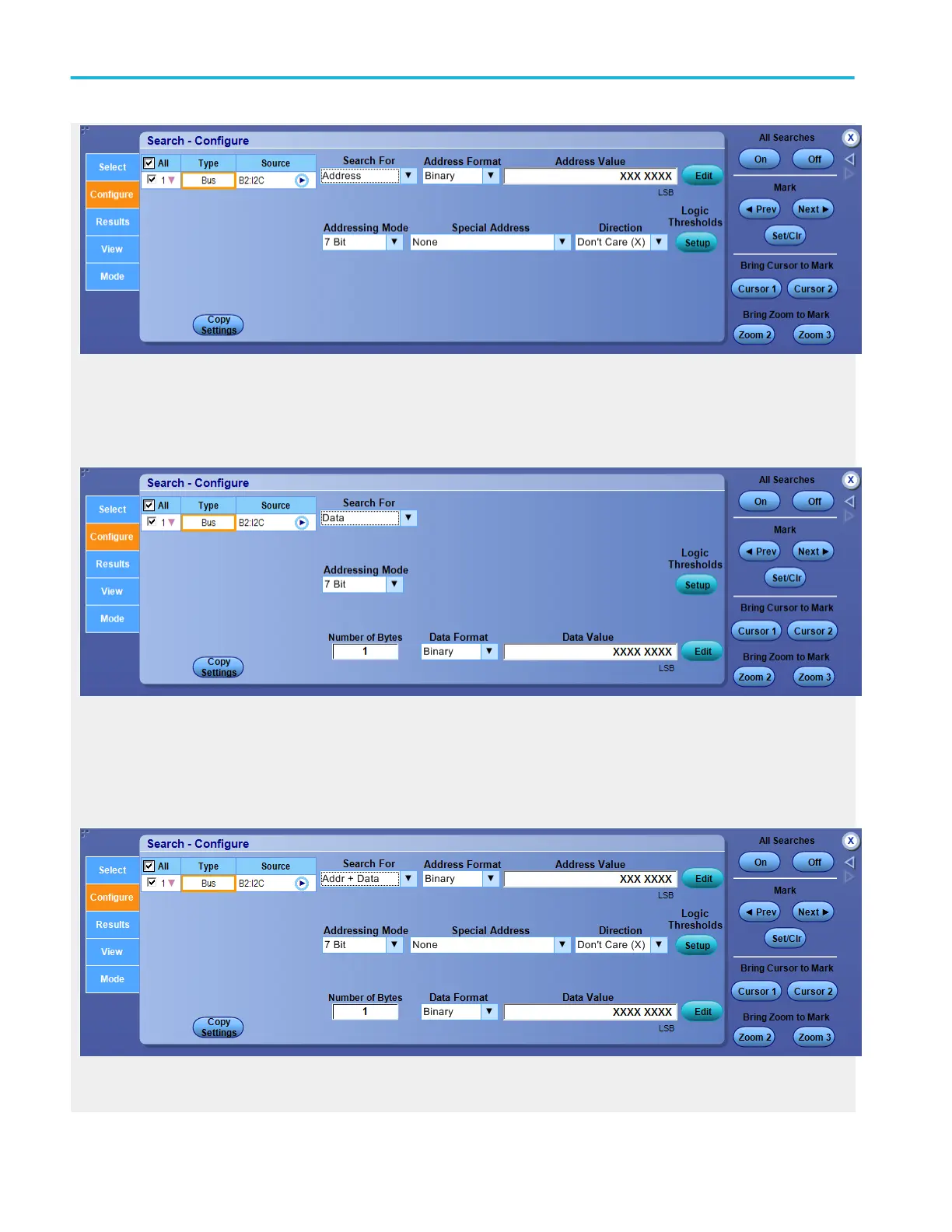

Select the Address Format, Addressing Mode, special Address, and Direction from the drop-down lists. Click Edit to enter the address
value. Click Setup to adjust the logic thresholds.
Search for data
The data type options available in Search For Data are Addressing Mode, Number of Bytes, Data Format, and Data Value.
Select the Addressing Mode and Data Format from the drop-down lists. Click Edit to enter the data value. Click Setup to adjust the logic
thresholds.
Search for address and data
The address and data mode options available in Search For Address are Address Format, Address Value, Addressing Mode, Special
Address, Direction, Number of Bytes, Data Format, and Data Value.
Select the Address Format, Addressing Mode, special Address, Direction, and Data Format from the drop-down lists. Click Edit to enter
the address and data values. Click Setup to adjust the logic thresholds.
Analyzing waveforms
324 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
