Trigger on Handshake Packet

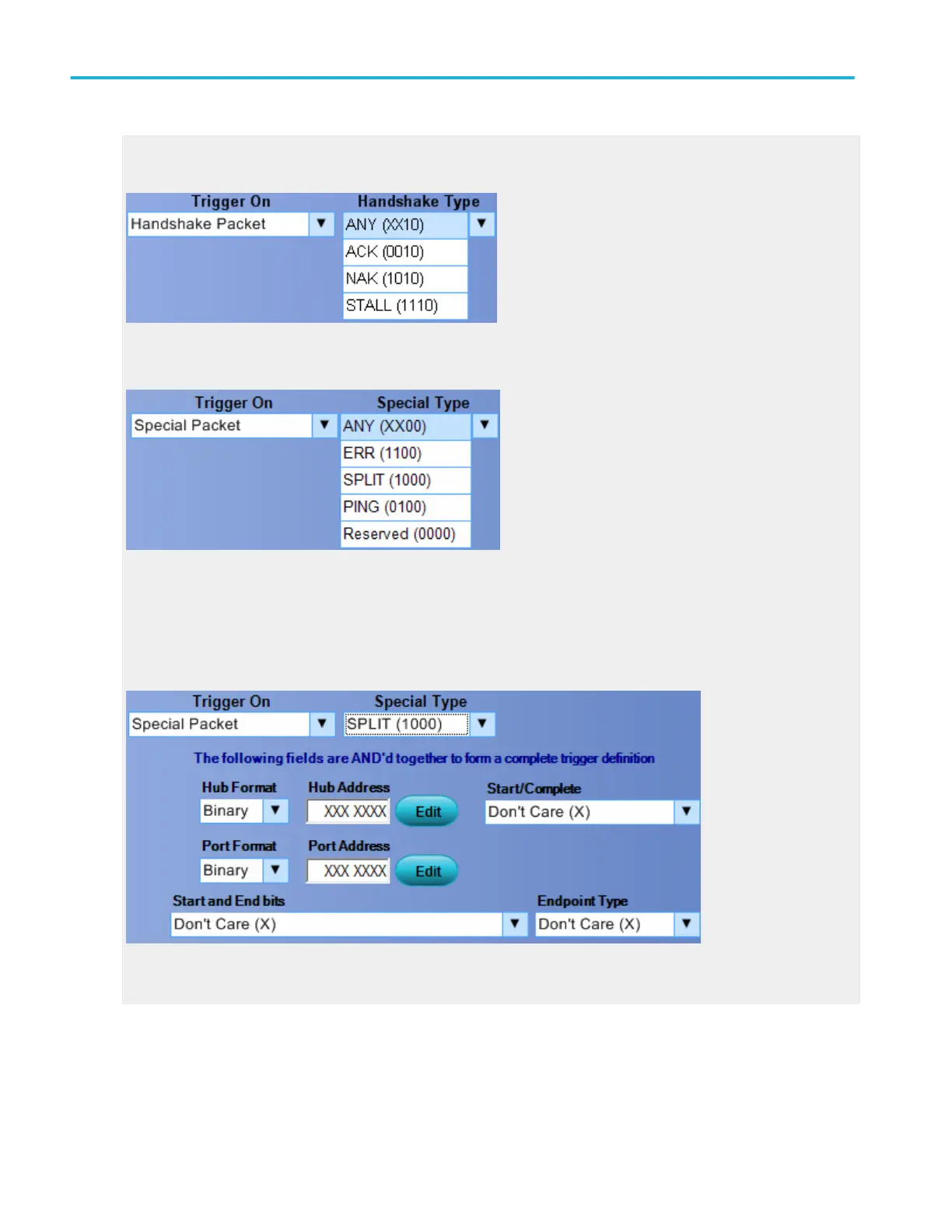

The handshake type options available in Trigger on Handshake Packet are as follows:
Trigger on Special Packet
The special type options available in Trigger on Special Packet are as follows:
In the USB bus setup window, set the Speed to High (480 Mbps).
In the Trigger setup window, set the Trigger On condition to Special Packet. Here you have the option to trigger on ANY,
specifically on ERR (high only), SPLIT (high only), PING (high only) or Reserved special types.
The Trigger on SPLIT token field allows you set the Hub Format and Address, Port Format and Address, Start/Complete, Start
and End bits, and Endpoint Type.
Trigger on Error
The error type options available in Trigger on Error are as follows:
