To use.
1. From the A Event tab, select the Trigger Type.
2. Configure the controls for the A Event in the trigger setup window.

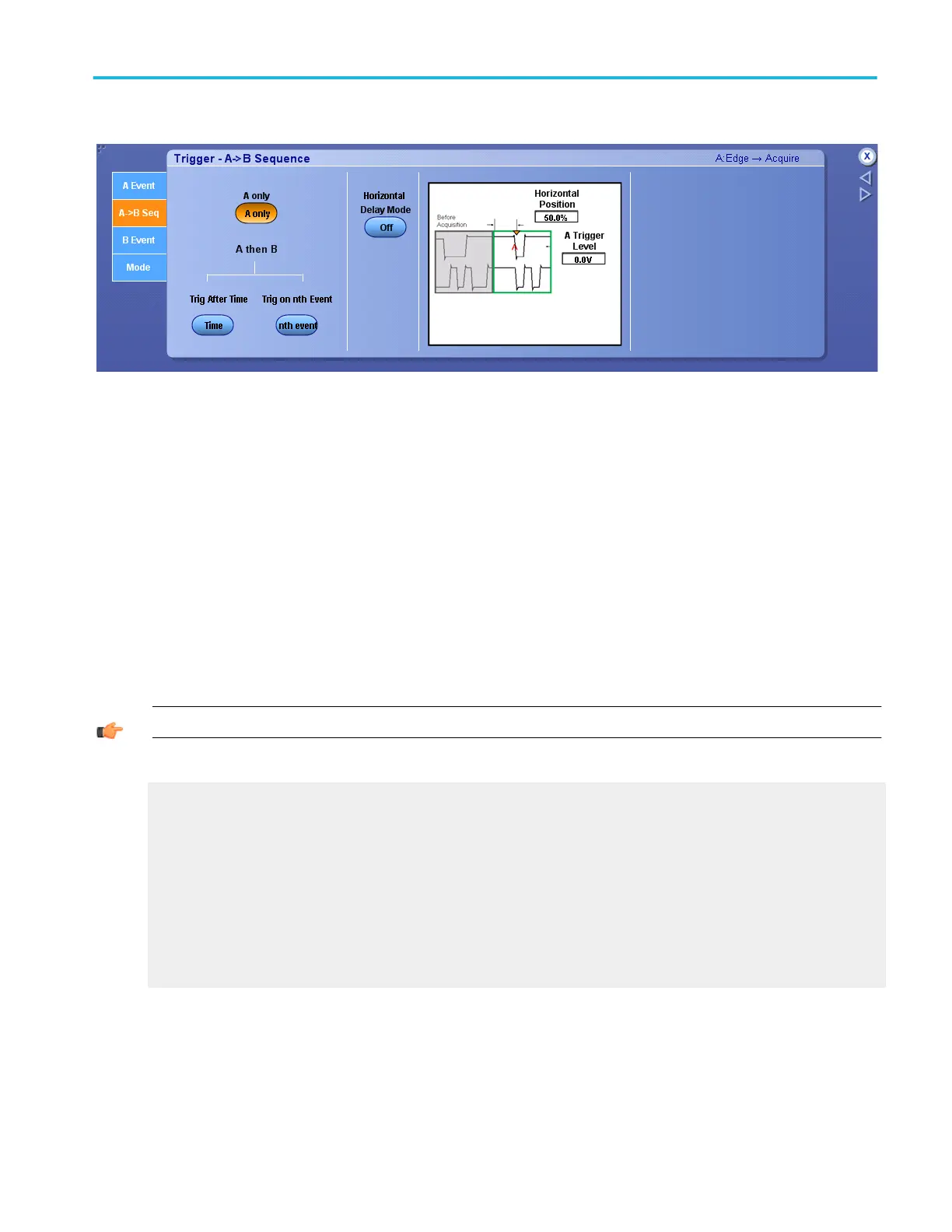

3. Select the A->B Seq tab; then click A Only.
4. Click to set the Horizontal Delay Mode button to Off.
5. Use the front panel Horizontal Position control (or click in the Horizontal Position entry box and use a multipurpose knob) to
define the amount of pretrigger data.
6. Use the front panel Trigger Level control (or click in the A Trigger Level entry box and use a multipurpose knob) to set the A
trigger level.
Behavior. When you select A Only with Delay Mode off, the instrument looks for the trigger conditions specified by the A event.
When the instrument recognizes the A event, it acquires the posttrigger data.
TIP. Use the front-panel Horizontal Position knob to set the amount of pretrigger data.
What do you want to do next?
Learn more about other trigger types.
Return to the Trigger Setup control window.
Pretrigger data
The data points of the waveform acquired and displayed before the trigger event. You can set the amount of pretrigger data with
the Horizontal Position control.
Posttrigger data
The data acquired and displayed after the trigger event. You can set the amount of pretrigger data with the Horizontal Position
control.
Trigger setups
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 447
