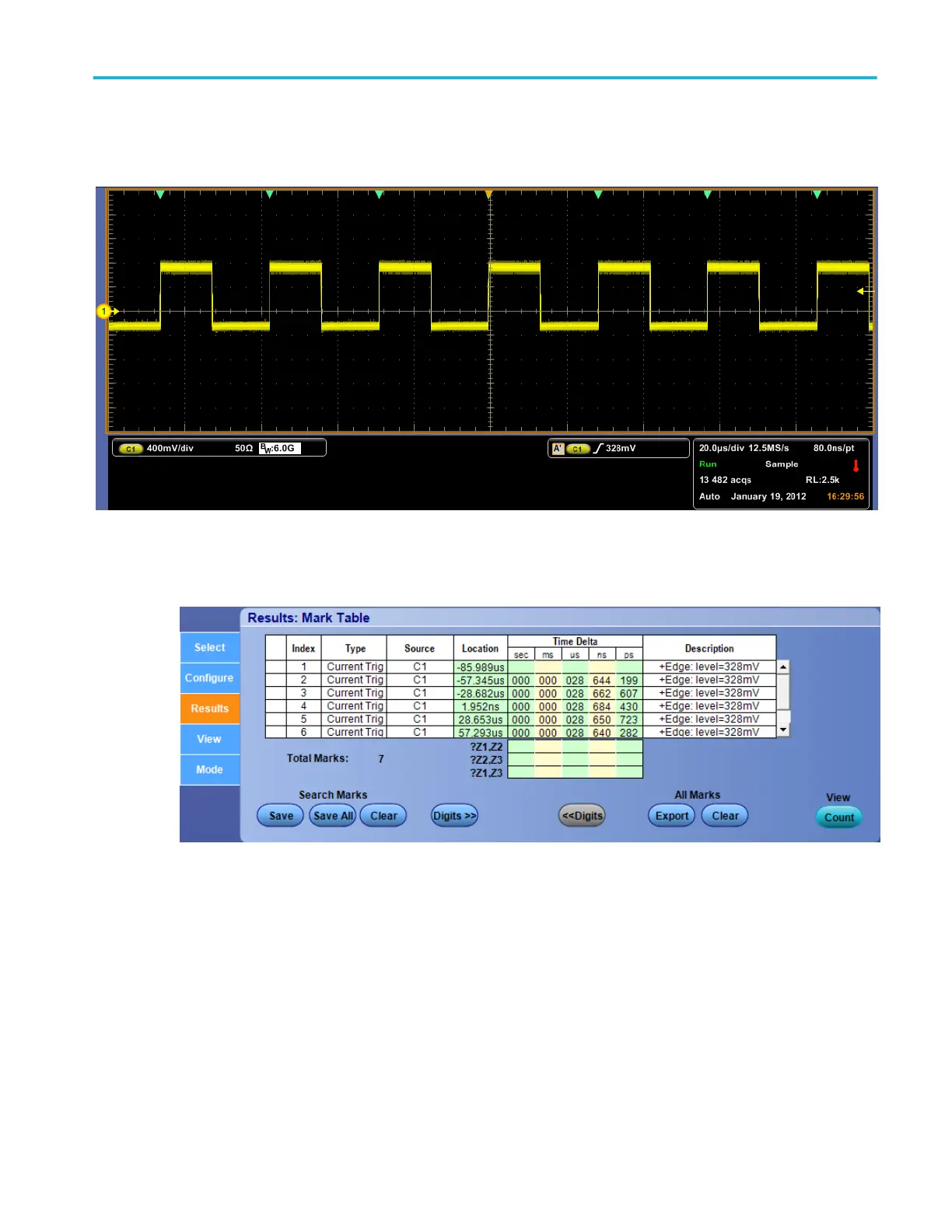

6. The instrument searches for and marks all similar events that meet the trigger requirements. The results of the search are

shown as marked events on screen, and they can also be viewed in the Results tab of the Mark Table.

7. From the Analyze menu select Search, and then select the Results tab. The results of the search are displayed and will

include the visual trigger area.
