To Next Page

To Previous Page

Display a wavefo

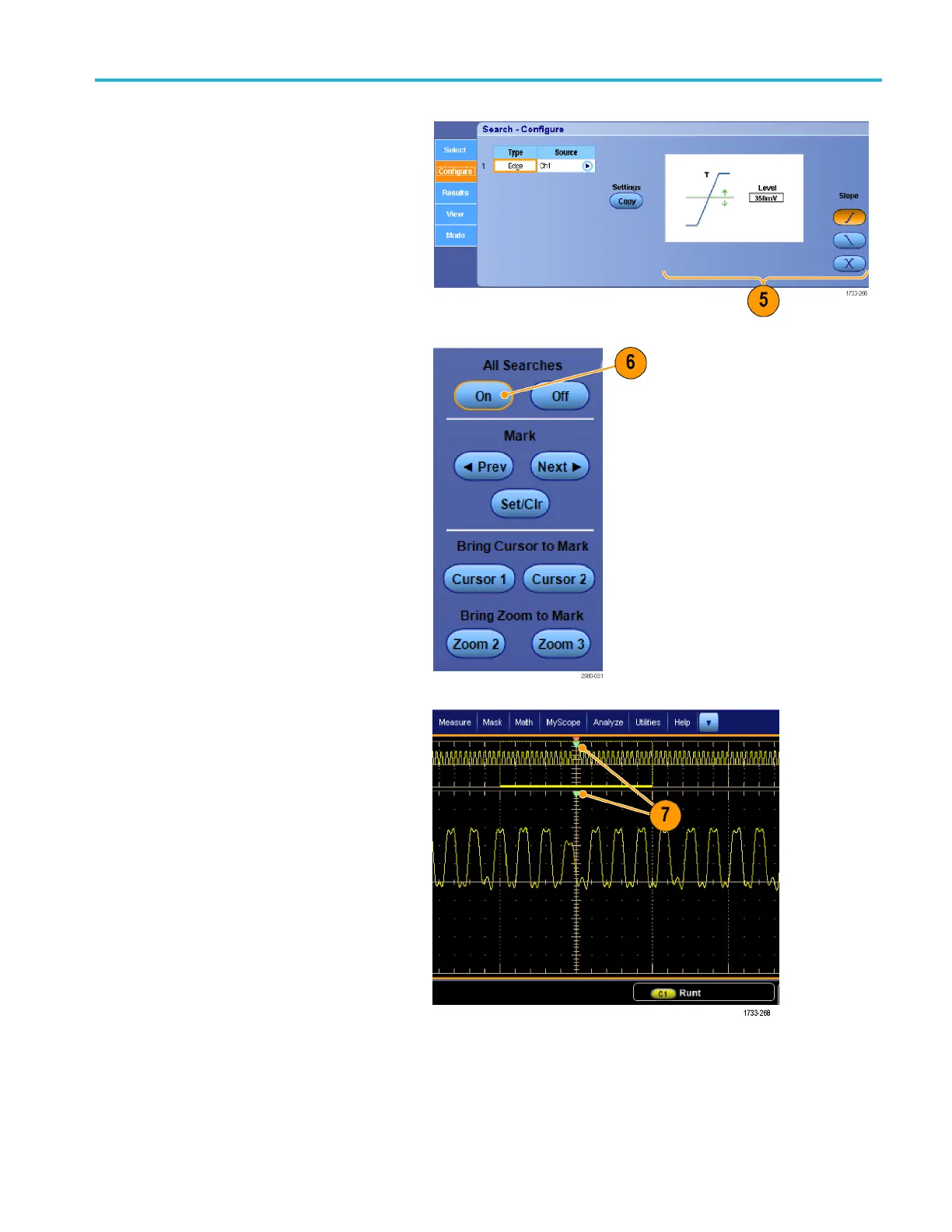

5. To modify the current search setup,

adjust the displayed controls. D isplayed

controls vary

depending on the selected

search.

6. If not already on, press All Searches to

toggle search to on.

7. On the screen, triangles show the

location of automatic marks and triangles

with a

white outline show the custom

(user-deﬁned) locations. These appear

on both normal and zoomed waveform

views

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 111

Table of Contents7
