Tektronix RSA306 Self Help Guide

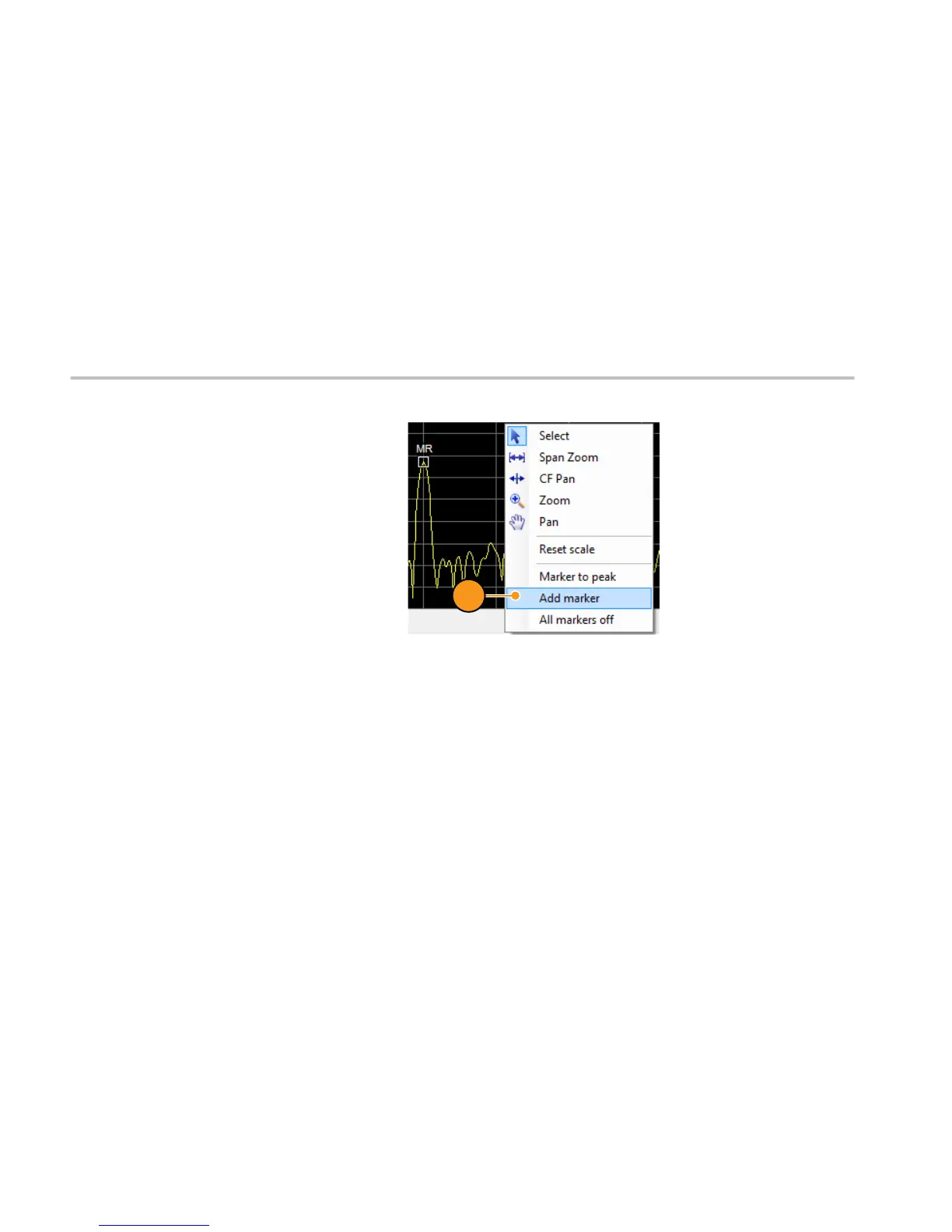

13. Right click the screen, and select Add
marker.
addmarker
13
14. Drag the new marker M1 to the noise level. Notice that readouts show:
■
The amplitude and the frequency of the reference marker (MR).
■
The amplitude and the frequency of the selected marker (M1).
■
The difference (ΔM1) between the selected marker position and the position of the reference marker.
Demo instructions
20 RSA306 Self-Guided Demo
