Tektronix RSA306 Self Help Guide

Demo 2: Power measurements with markers
Integrated power between markers is an easy way to measure the power of a modulated signal without setting up a
channel power measurement. SignalVu-PC performs integrated power and power density measurements using
power markers. When measuring signal density, the signal is assumed to be noise like, and measurements are
corrected to a 1 Hz bandwidth. Selecting power measurement markers automatically switches the trace detector to
Ave (RMS) for accurate results. Integrated power between markers is an easy way to measure the power of a
modulated signal without setting up a dedicated channel power measurement.
Instructions for the demo board

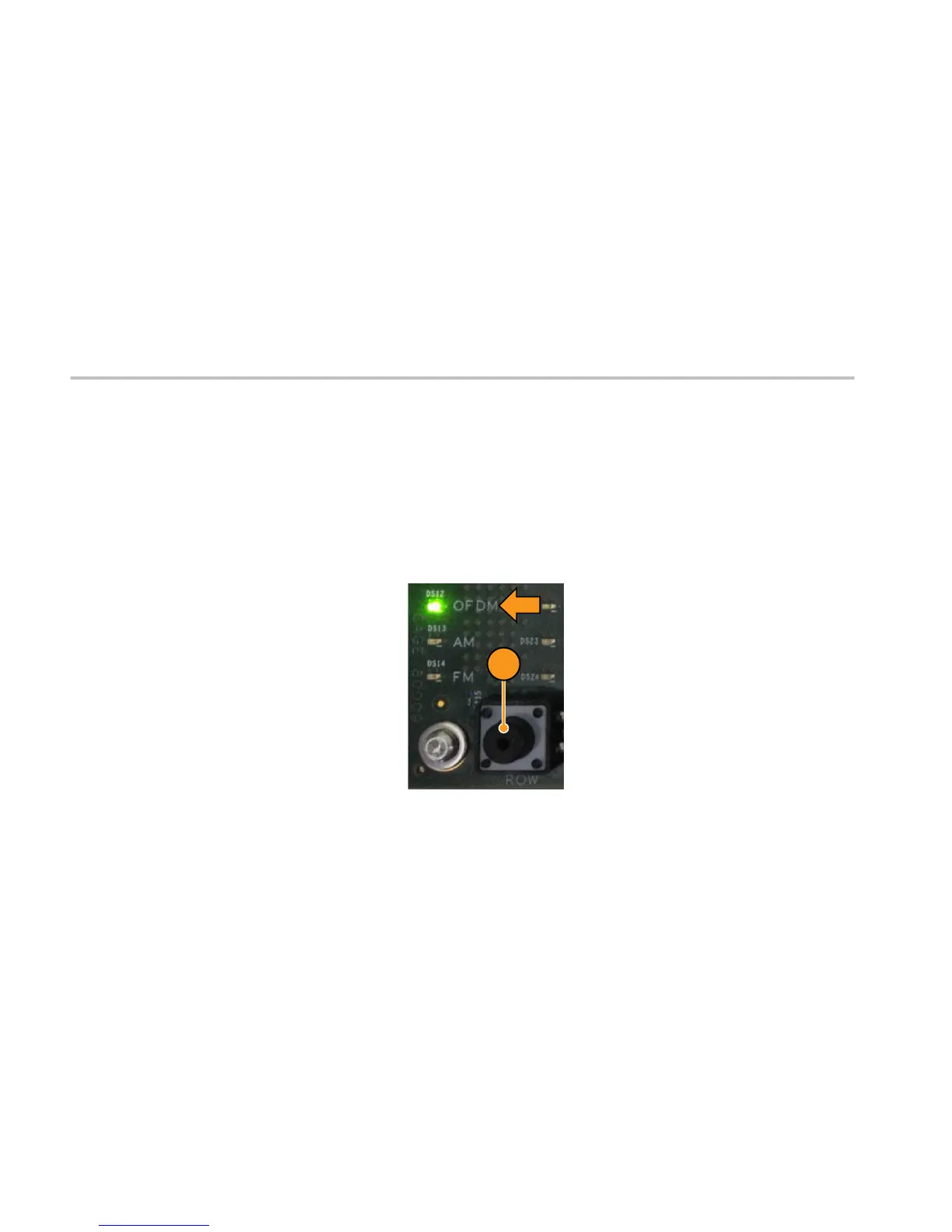

1. Keep the same setting as the last
demo. Use the ROW and COLUMN
buttons to change the signal type
from CW to OFDM.
odfm
1
Demo instructions
26 RSA306 Self-Guided Demo
