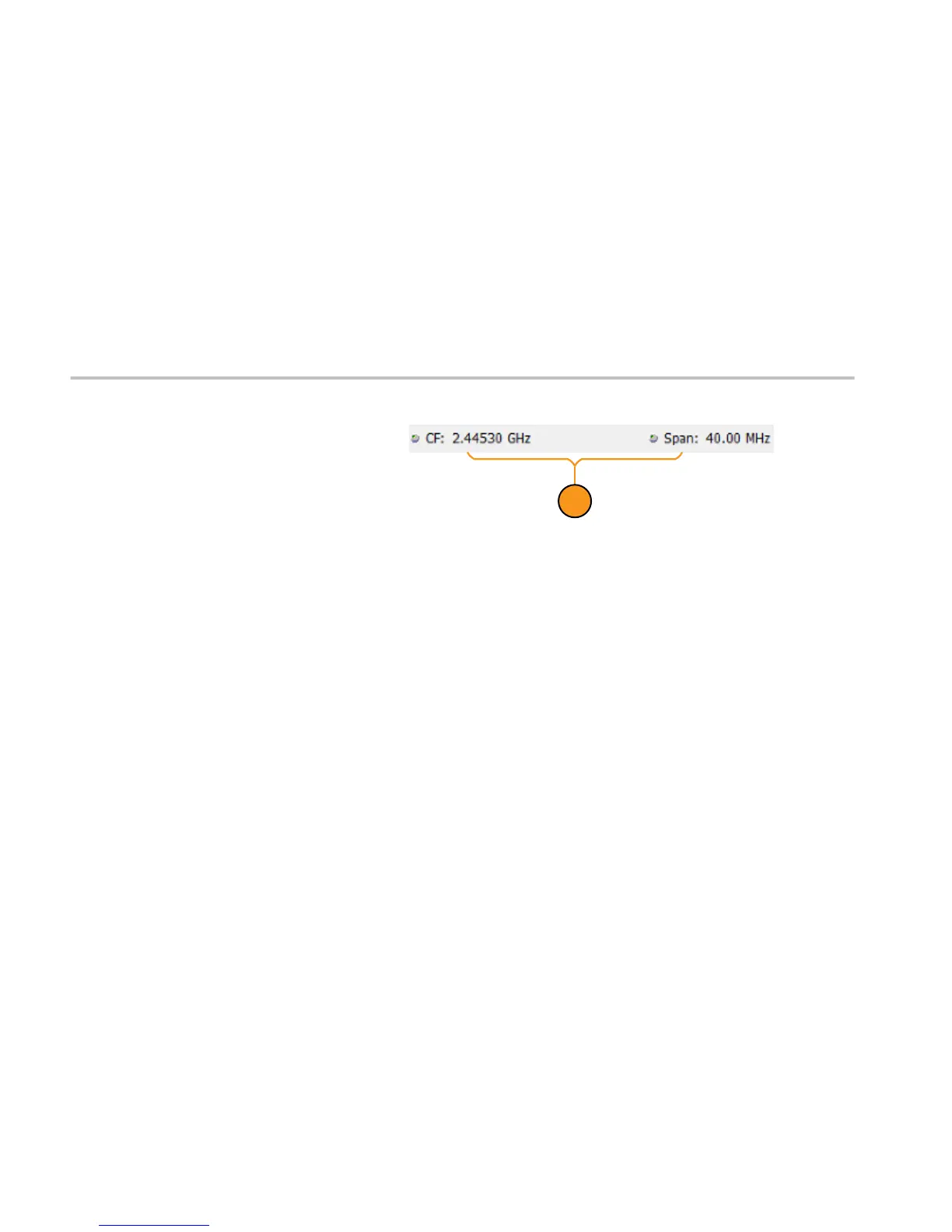

5. In the DPX display, set the CF to
2.4453 GHz and the Span to 40 MHz.
Demo5-First5Steps
5
6. Select the Split view.
You can see the hopping signals displayed in the DPX spectrum, and compare it in the standard spectrum
display on the right side. Note that the standard spectrum display nearly or always misses the transient
signal.
Demo instructions
44 RSA306 Self-Guided Demo
