Tektronix TBS2104B Service Manual

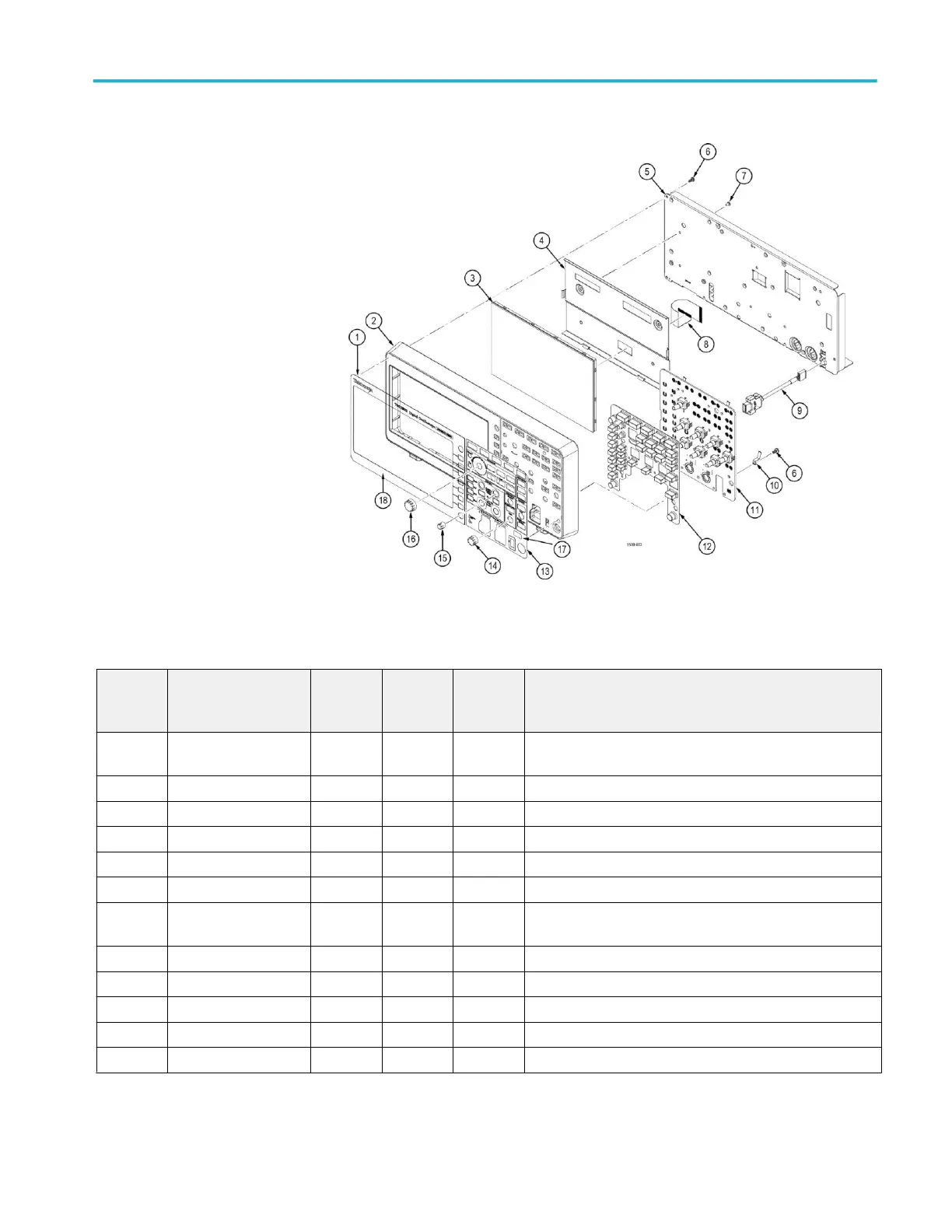

Figure 8: Two channel models; front half
Table 6: Two-channel model parts: front panel, display, and front chassis
Fig. &
index
number
Tektronix part number Serial no.
effective
Serial no.
discont'd
Qty
1
Name & description
5-3-1 335-4111-xx 1 LABEL, BLACK FRAME-B2 9 INCH DISPLAY, TBS2102,
SAFETY CONTROLLED
-2 850-0439-xx 1 FRONT CASE, 2CH
-3 850-0312-xx 1 FRAME ASSEMBLY; DISPLAY; TBS2K
-4 407-5760-xx 1 BRACKET, DISPLAY MOUNT
-5 441-2844-xx 1 CHASSIS, MAIN, SAFETY CONTROLLED
-6 211-1273-xx 22
2
SCREW,PT; K35-1.57, PAN HEAD, STL, ZNPL, T-15
-7 211-1272-xx 43
2
SCREW, MACHINE; 6-32 X 0.250, PNH, STL, ZNPL,
T-15 TORX DR
-8 174-6941-xx 1 CABLE, DISPLAY, FFC, 50POS
-9 174-5411-xx 1 CABLE EXTENSION, USB-HOST
-10 131-8139-xx 7 CONTACT, SPRING; FRONT PANEL ELEC
-11 870-1161-xx 1 FRONT PANEL B2 BOARD
-12 260-3114-xx 1 SWITCH, KEYPAD, ELASTOMERIC FRONT PANEL
Replaceable parts
TBS2000B Series Service Manual 27
