Getting Started
The slide opera
tion of the TCP303 and TCP404XL current probes is shown in the
following illustrations. To open the probe:
1. Press the bott
om of the lock button.
2. Squeeze the handle until the core is open.
3. Place the probe core around the conductor.

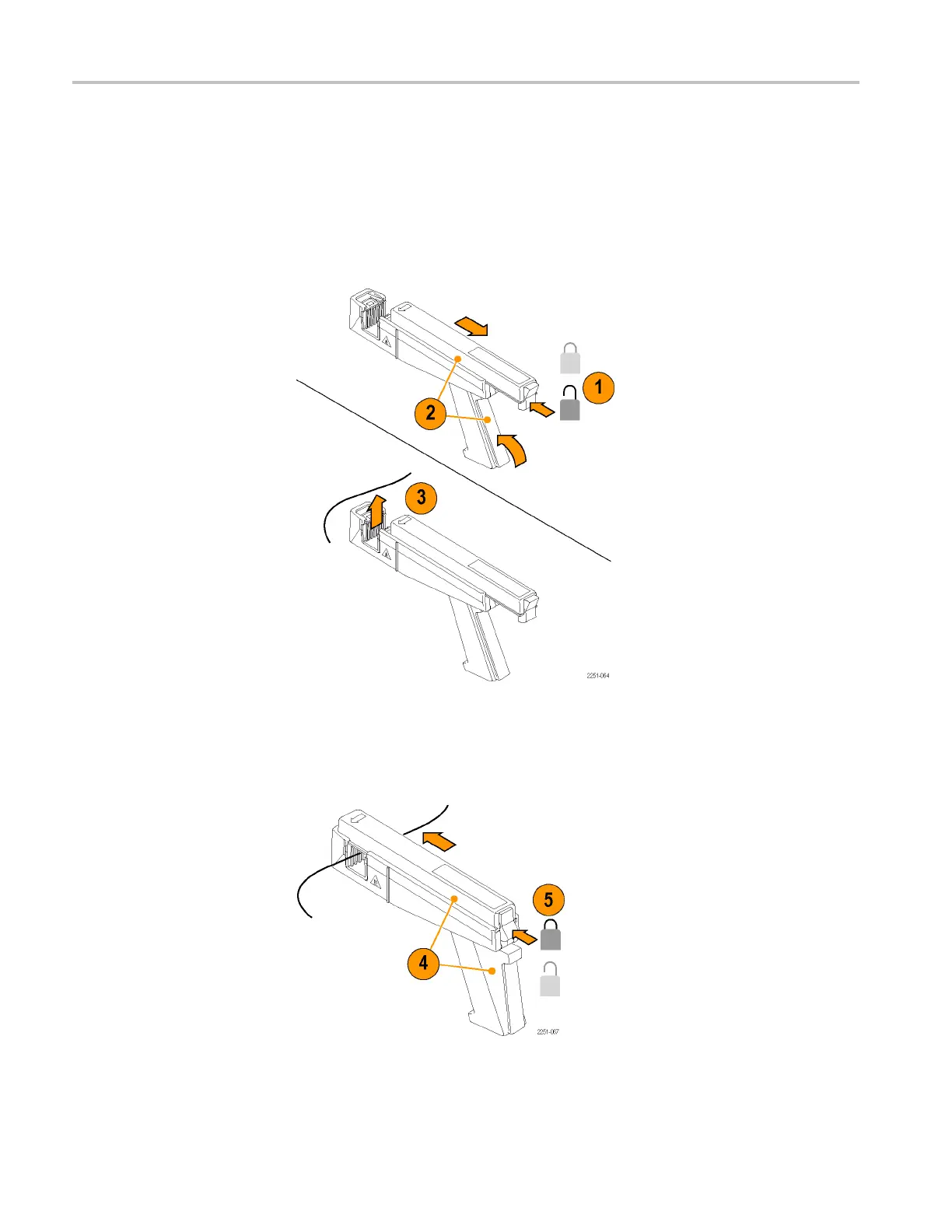

Figure 6: Unlock and open the TCP303 and TCP404XL
4. To lock the p robe, release the squeeze handle.
5. Press the top of the lock button.
Figure 7: Close and lock the TCP303 and TCP404XL
