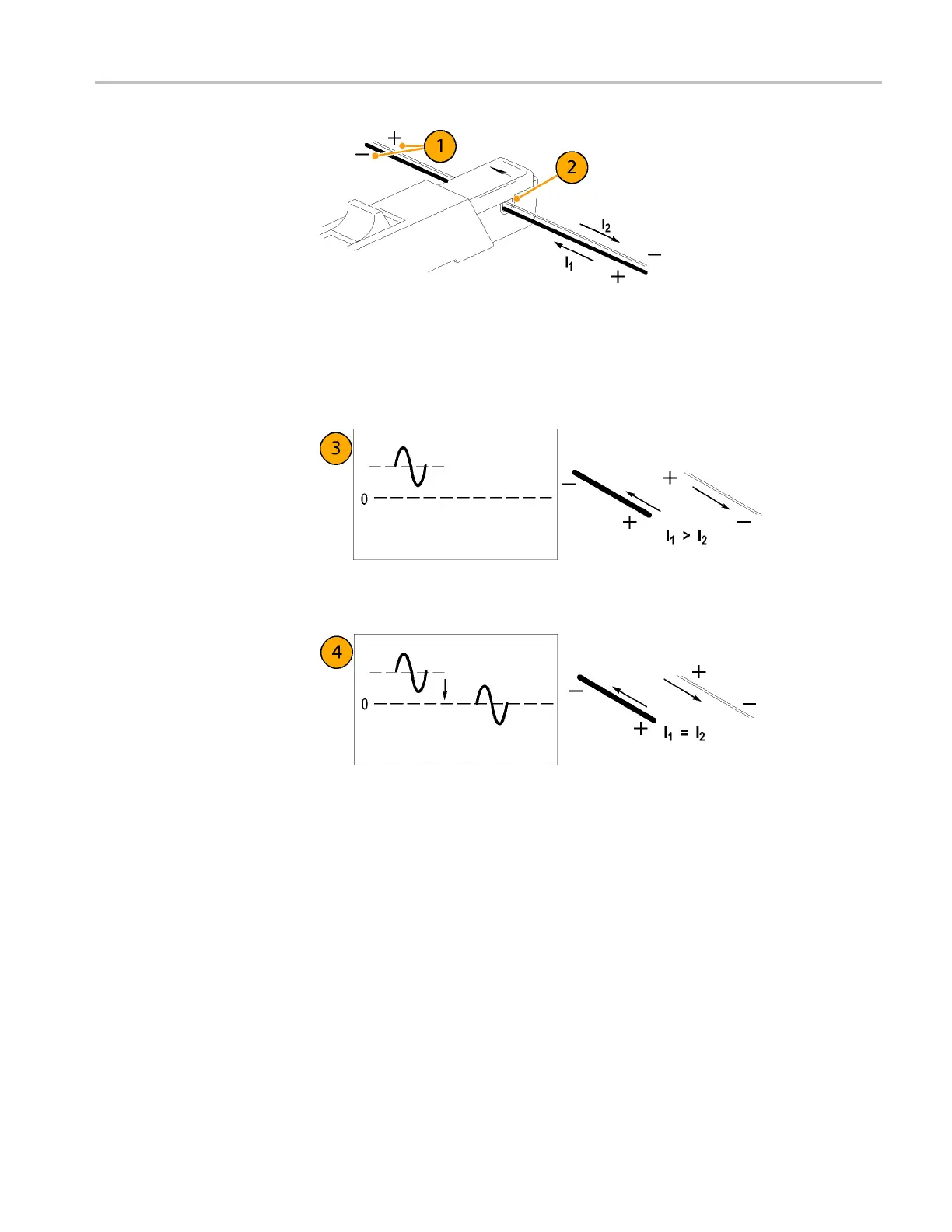

Figure 11: Measuring differential current and nulls
3. Measure the current. A waveform above the baseline indicates the conductor
with the conventional current flow (I
1
, in the direction of the probe arrow),
is carrying the greater c urrent. Conventional current flows from positive to
negative.
4. To adjust for a current null, adjust the current in one of the conductors until
the displayed measurement is zero.
