Removal and Replacement
6–12
TDS 340A, TDS 360 & TDS 380 T
echnical Reference
Mounting screws (4)
EMI gasket: Access from
the front of the cabinet.
Front foot: Rotate
and remove.
Handle assembly:
Remove the internal
screws and pull out
handle hubs to remove.
Mounting screw

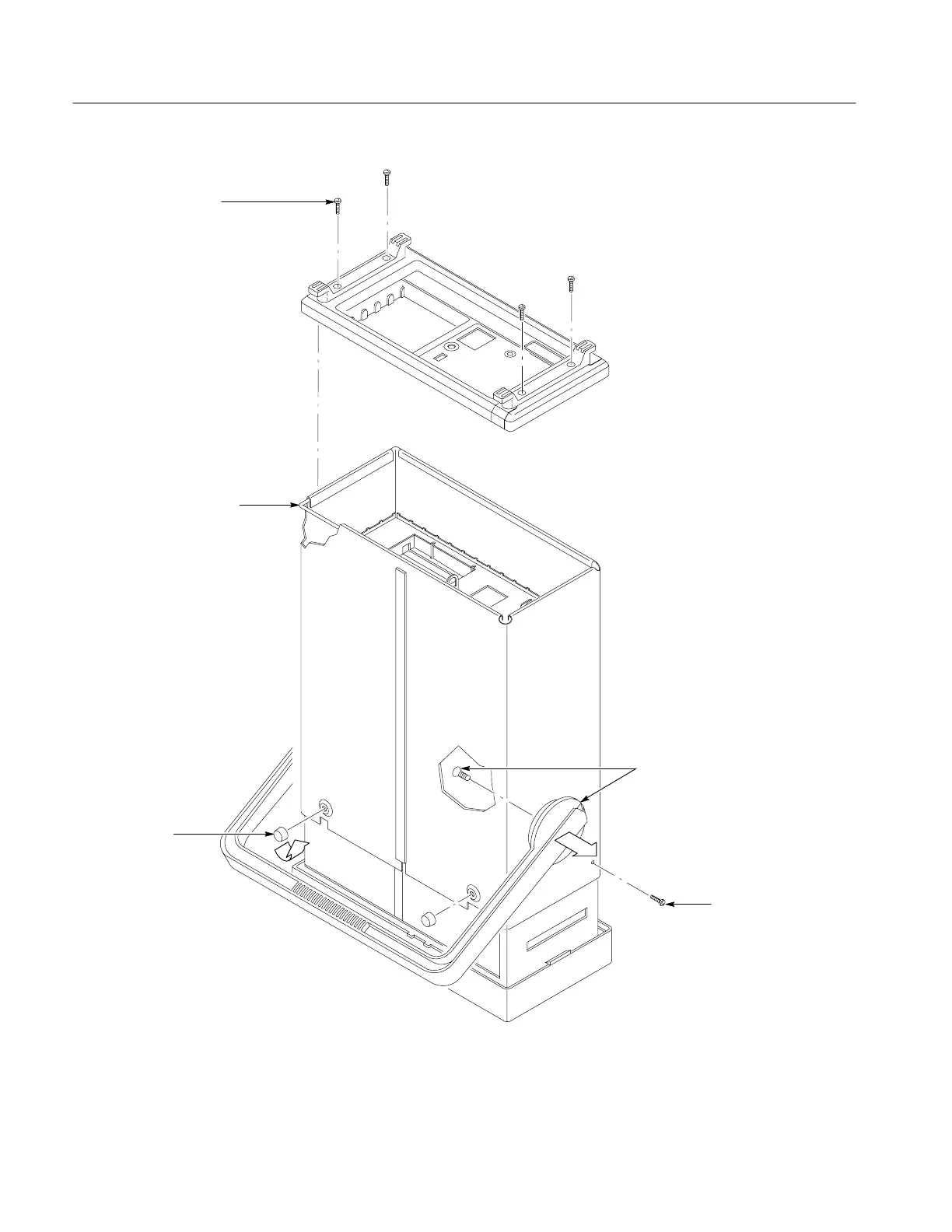

Figure 6–5: Rear cover
, cabinet, and cabinet handle and feet removal
103
