CURSor:PAIred:POSITION<x>
Sets or queries the vertical bar (time) position of the first or second paired cursor.
x is either 1 or 2 and refers to the first or second cursor.
The CURSor:VBArs:UNITS command specifies the units for these cursors.
In extended-acquisition-length mode, the paired cursor position must be within
the waveform record (as opposed to the entire extended acquisition length) for
any change to happen.
Cursor
CURSor:FUNCtion, CURSor:VBArs:UNITS

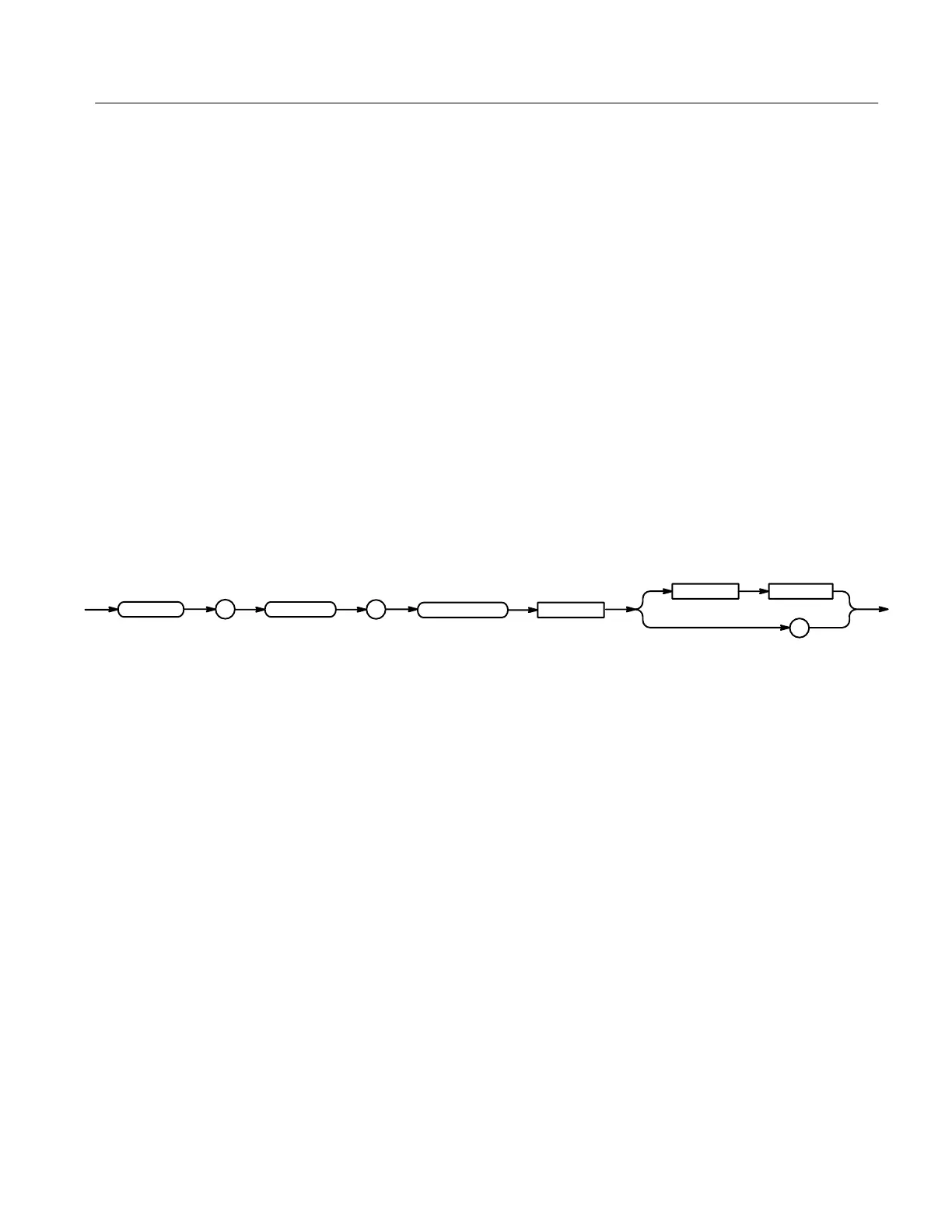

CURSor:PAIred:POSITION <NR3>
CURSor:PAIred:POSITION?
CURSor
:
PAIred :
?
<Space> <NR3>
POSITION <x>
<NR3> specifies the cursor position in the units specified by the
CURSor:VBArs:UNITS command.
The position can appear in units of seconds, 1/seconds (hertz), or video line
numbers (with option 05). On the TDS 400A, position can also appear in units of
clocks or 1/clocks.
CURSOR:PAIRED:POSITION1 9.00E-6
specifies the first paired cursor is at 9 ms.
CURSOR:POSITION2?
might return 1.00E-6, indicating that the second paired cursor is at 1 ms.
CURSor:PAIred:POSITION<x>Pcnt
TDS 400A Only
Sets or queries the horizontal position of the paired cursors (x is either 1 or 2) in
units of % of record length.
Group
Related Commands
Syntax
Arguments
Examples
