Performance Tests

TDS 500B, 600B and TDS 700A Service Manual

4–73

Positive pulse

Negative pulses

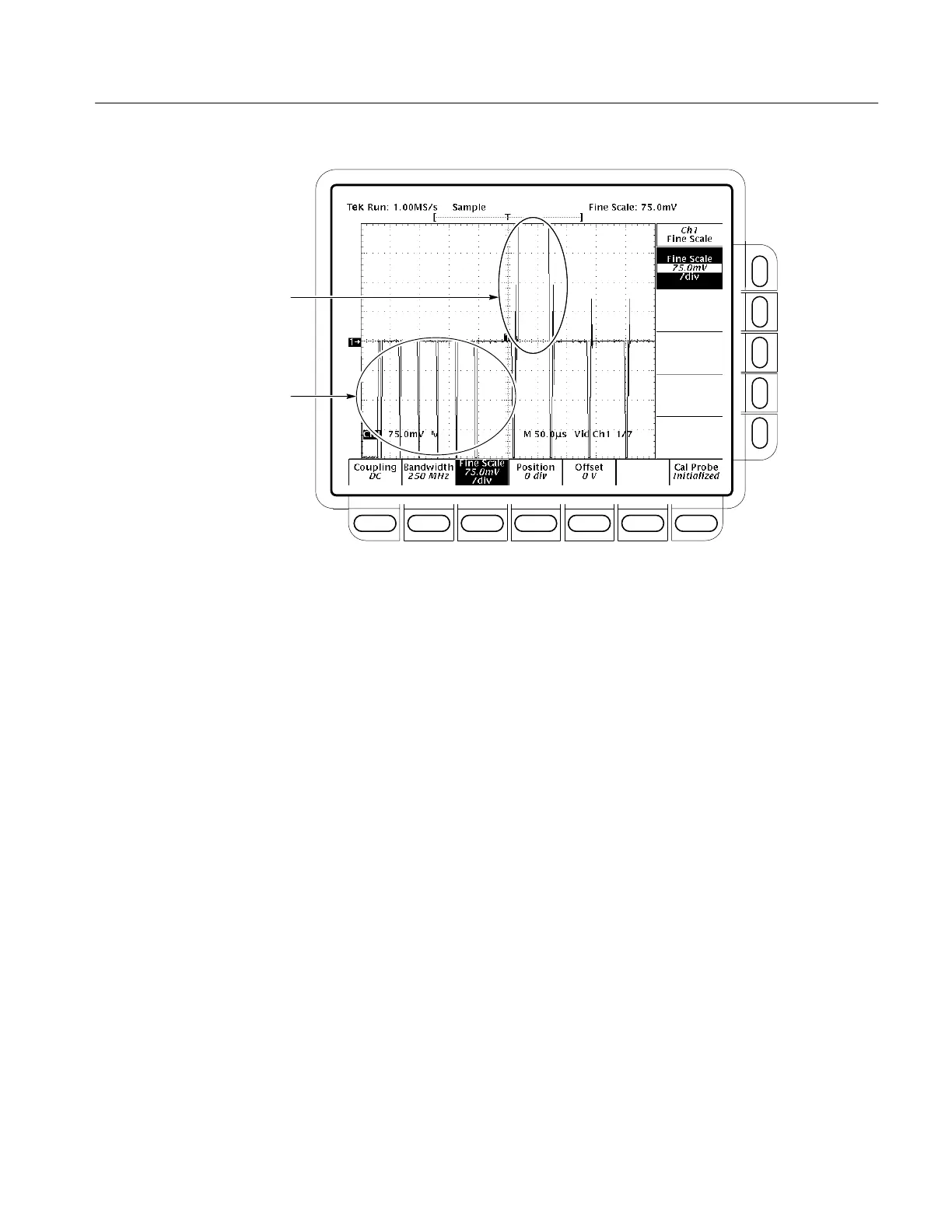

Figure 4–30: Triggered Signal Range Test – 75 mV

p. Disconnect all test equipment (TSG121) from the digitizing oscillo-

scope.

5. Check 60 Hz Rejection.

a. Set up oscilloscope for 60 Hz Rejection Test.

H Use the keypad to set the Ch1 Fine Scale to 282 mV (press 282,

SHIFT m, then ENTER).

H Press WAVEFORM OFF.

H Press CH2.

H Press VERTICAL MENU.

H Use the keypad set the fine scale to 2 V (press 2, then ENTER).

H Press HORIZONTAL MENU.

H Use the keypad to set the horizontal scale (/div) to 5 ms (press 5,

SHIFT, m, then ENTER).

b. Set up 60 Hz signal generator.

H Connect the output of the signal generator to the CH2 input through

a 50 W cable. See Figure 4–31.
