Performance Tests

TDS 500B, 600B and TDS 700A Service Manual

4–79

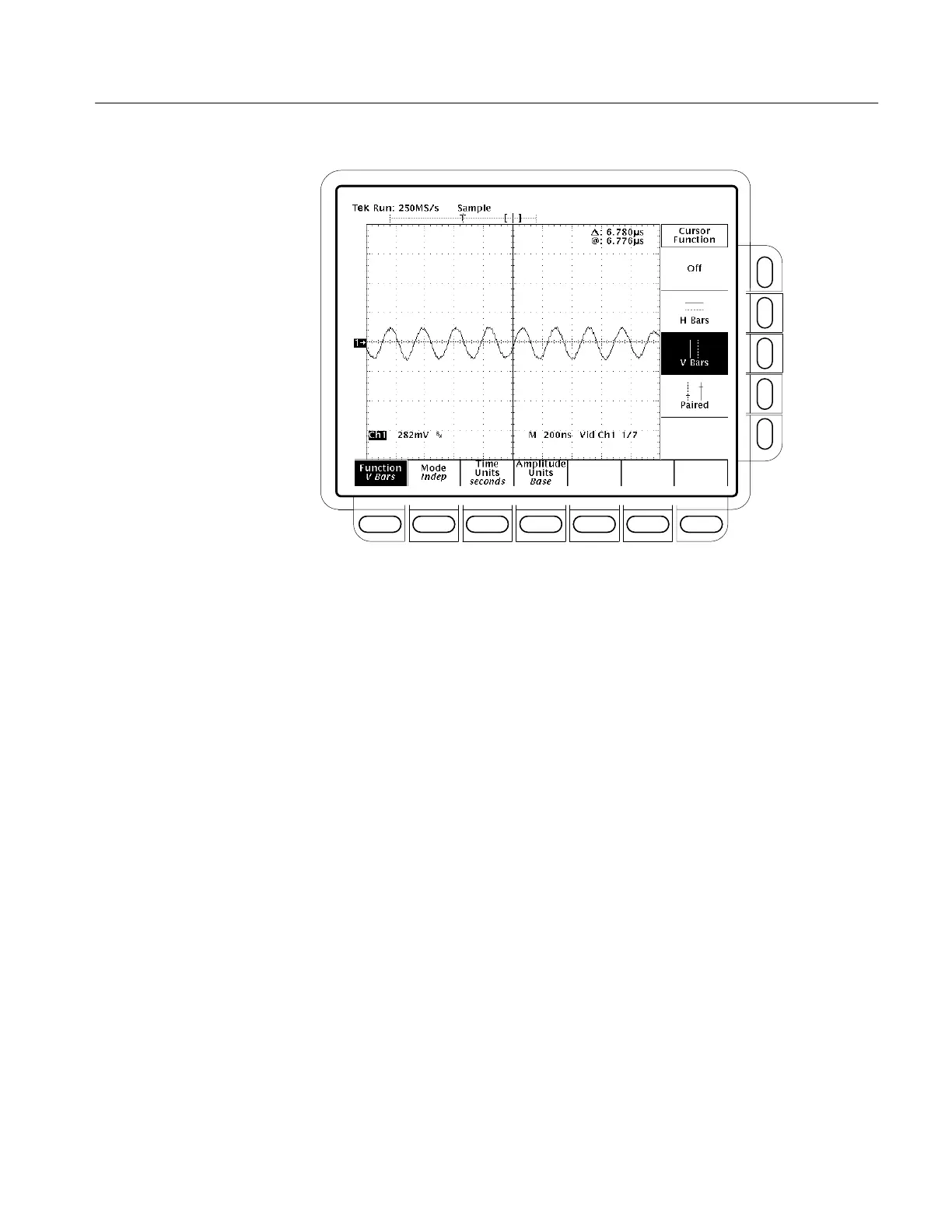

Figure 4–37: Line Count Accuracy Correct Result Waveform

H Disconnect all test equipment (TSG 121) from the digitizing

oscilloscope.

H Turn off cursors by pressing CURSOR, then the main-menu

Function button, and, finally, Off from the side menu.

7. Check the Sync Duty Cycle.

a. Set up digitizing oscilloscope for Sync Duty Cycle Test.

H Press TRIGGER MENU.

H Press the Standard pop-up to select FlexFmt. Trigger Type should

already be set to Video.

H Press the main-menu Setup.

H Press the side-menu Field Rate.

H Use the keypad to set the field rate to 60.05 Hz (press 60.05, then

ENTER).

H Press the side-menu Lines.

H Use the keypad to set the field rate to 793 lines (press 793, then

ENTER).
