Performance Tests

4–82

TDS 500B, 600B and TDS 700A Service Manual

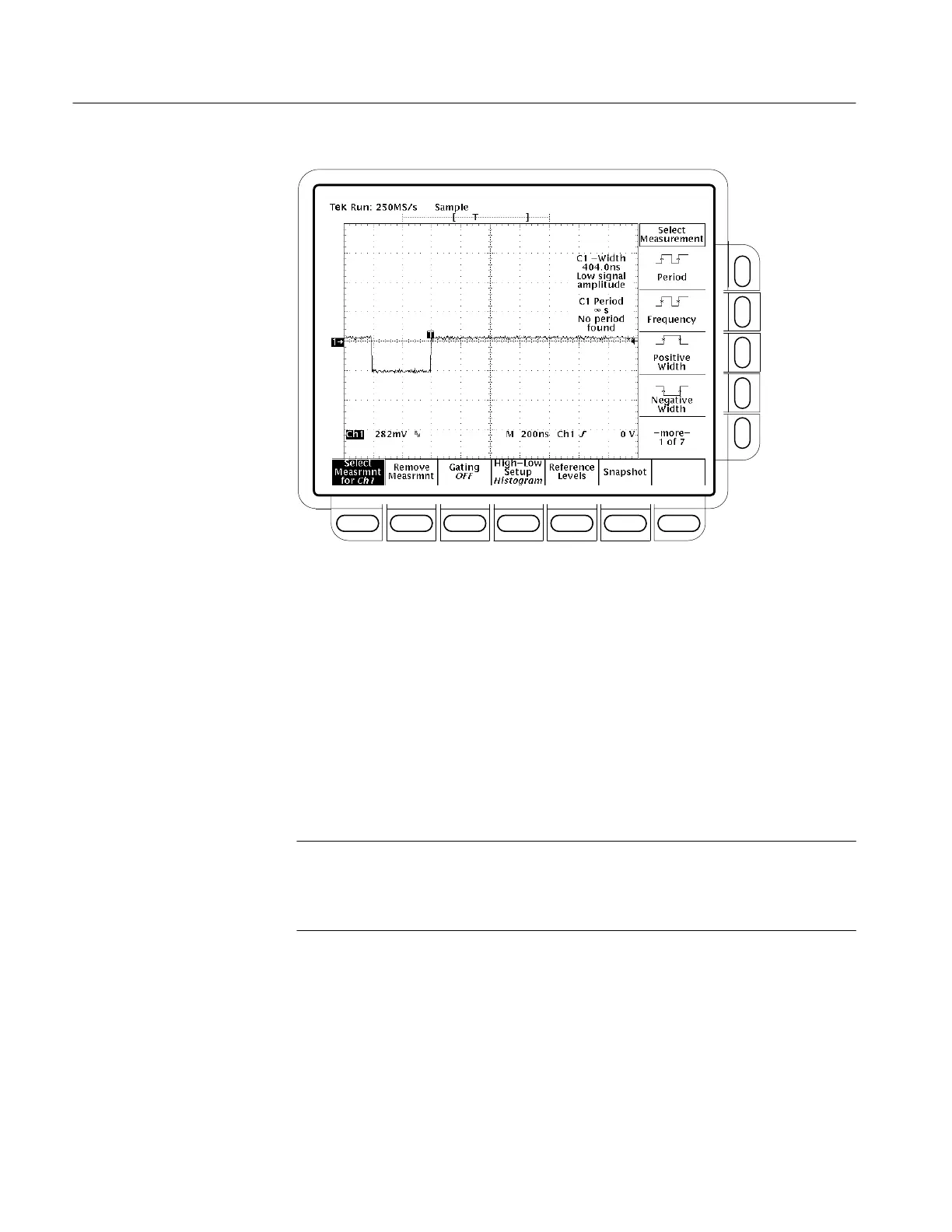

Figure 4–39: Sync Duty Cycle Test: One-Div Neg Pulse Waveform

H Turn the pulse generator PULSE DURATION variable control to

adjust the negative pulse so the oscilloscope’s CH1 – Width

measurement displays 400ns +/–10 ns.

H Turn the HORIZONTAL SCALE knob to set the oscilloscope time

base to 5ms/div.

H Turn the pulse generator PERIOD variable control to adjust the

period until the oscilloscope CH1 Period measurement reads

21.000ms –25/+50 ns. See Figure 4–40. Read note shown below.

NOTE. The pulse duration and period adjustments are critical in making this

measurement. If the pulse duration and/or the duty cycle are not stable, the

FLEXFMT function may not function. You must take care when making these

adjustments.
