Adjustment Procedures

5–16

TDS 500B, 600B and TDS 700A Service Manual

a. Access Inner Probe Tip and Adjustment Ports:

H The probe tip should be exposed from the procedure Measure Probe

Bandwidth. If not, follow the instructions in Figure 5–5 to expose

the probe tip.

H Follow the instructions in Figure 5–7 to remove the probe body

covers.

Use a small standard screwdriver to

pry between the cover and metal cord

connector to pop off cover.

Repeat for lower cover.

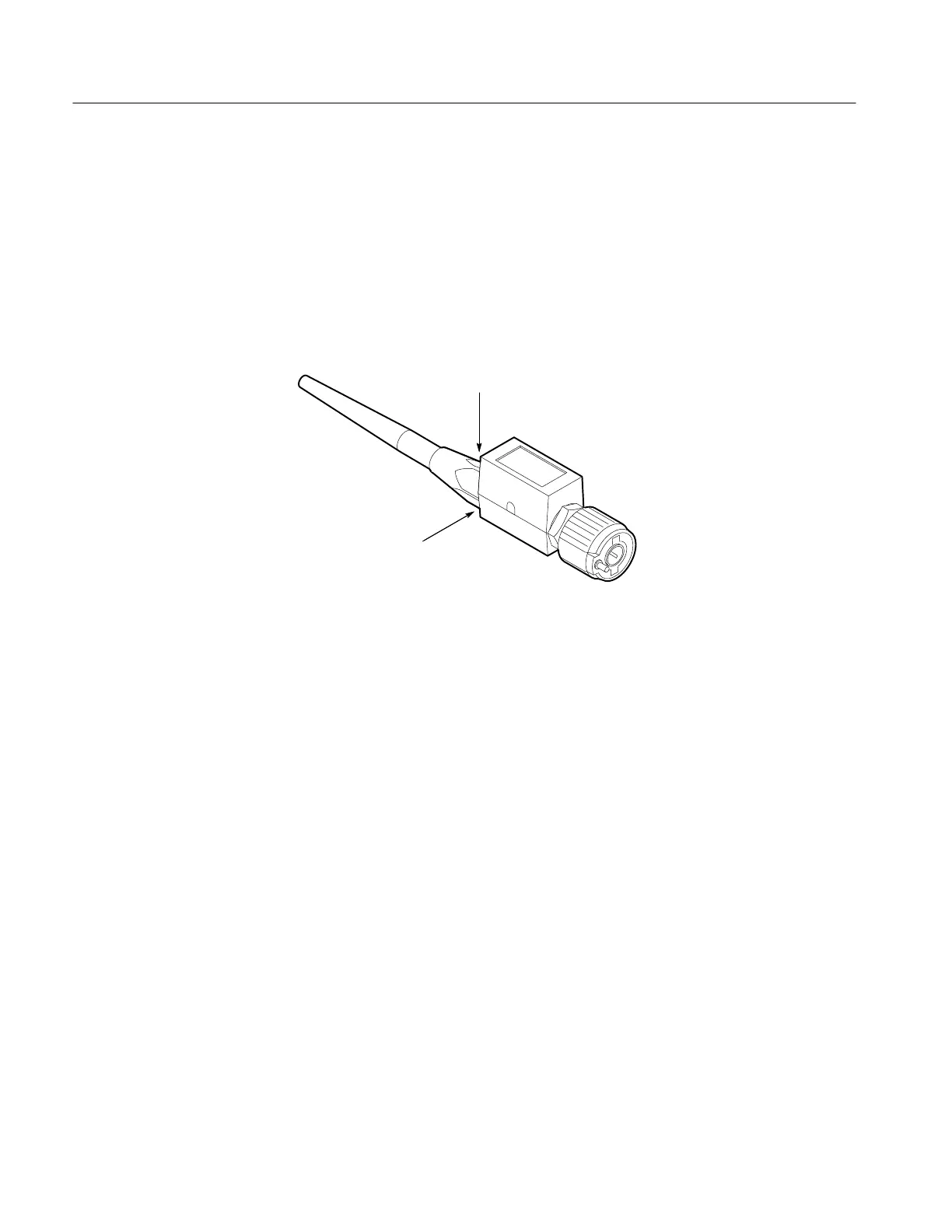

Figure 5–7: Exposing the Probe Body

b. Hook up test-signal source:

H Connect the high-amplitude output of a calibration generator,

through a 50 W precision cable, to the input of a tunnel diode pulser.

See Figure 5–8.

H Connect the output of the tunnel diode pulser through a 10X

attenuator to CH 1.

H Set the triggering level of the tunnel diode pulser to minimum.
