Performance Tests

1–94

TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications

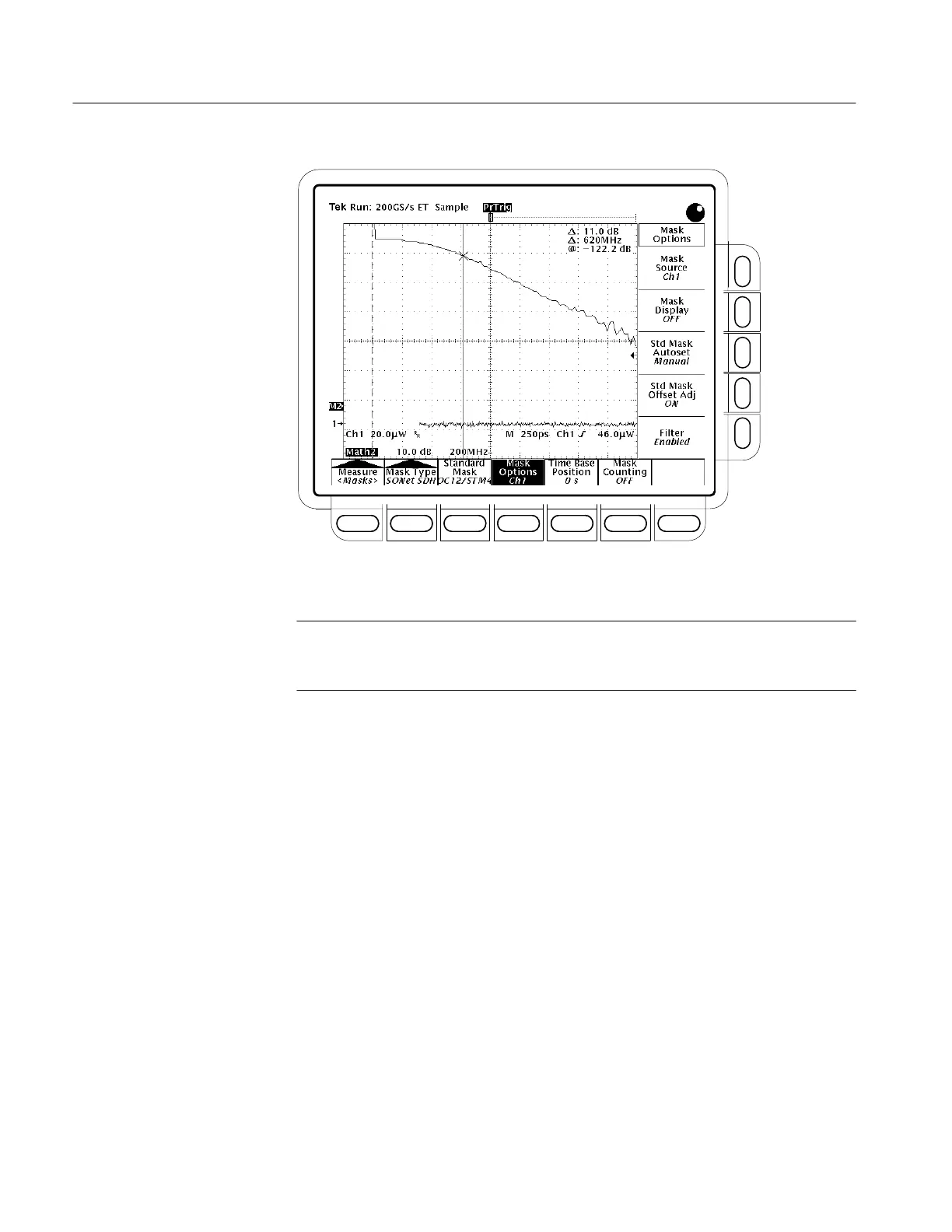

Figure 1–45: Optical impulse response for OC–12 SONET Reference Receiver

NOTE. In Figure 1–45, the left cursor is at the DC frequency. The right cursor is

at the OC-12 data rate of 622 MHz "4 MHz. Also, note that the reference

receiver, RR, designation is beside the 20 W vertical scale factor.

f. Next, move the cursor currently positioned at the beginning of the record

until the cursor is just right of the DC spike in the response (see

Figure 1–46). The unsigned D dB readout should be at or between the

upper and lower limits shown in Table 1–10 (note that the entries in the

table are signed numbers, but the D dB readout is not) for the mask that

is turned on.

Table of Contents5
General Safety Summary9
Preface13
Contacting Tektronix14
Performance Verification Procedures15
Input Channels Vs. Model18
Conventions18
Figure 1-1: Map of Display Functions19
Brief Procedures21
Self Tests21
Figure 1-2: Verifying Adjustments and Signal-Path Compensation22
Functional Tests23
Figure 1-3: Universal Test Hookup for Functional Tests - TDS 600B Shown24
Prerequisites31
Equipment Required32
Table 1-1: Test Equipment32
TDS 600B Test Record35
TDS 500C/700C Test Record39
Signal Acquisition System Checks43
Table 1-2: DC Offset Accuracy (Zero Setting)44
Figure 1-4: Measurement of DC Offset Accuracy at Zero Setting45
Figure 1-5: Initial Test Hookup46
Table 1-3: DC Voltage Measurement Accuracy47
Figure 1-6: Measurement of DC Accuracy at Maximum Offset and Position48
Figure 1-7: Initial Test Hookup50
Figure 1-8: Optional Initial Test Hookup50
Table 1-4: Analog Bandwidth51
Figure 1-9: Measurement of Analog Bandwidth53
Figure 1-10: Initial Test Hookup55
Figure 1-11: Measurement of Channel Delay - TDS 684B Shown57
Table 1-5: Delay between Channels Worksheet58
Time Base System Checks59
Figure 1-12: Initial Test Hookup59
Trigger System Checks61
Figure 1-13: Measurement of Accuracy - Long-Term and Delay Time61
Figure 1-14: Initial Test Hookup62
Figure 1-15: Measurement of Time Accuracy for Pulse and Glitch Triggering64
Figure 1-16: Initial Test Hookup65
Figure 1-17: Measurement of Trigger-Level Accuracy67
Figure 1-18: Initial Test Hookup70
Figure 1-19: Measurement of Trigger Sensitivity - 50 Mhz Results71
Output Signal Checks74
Figure 1-20: Initial Test Hookup74
Figure 1-21: Measurement of Main Trigger out Limits76
Figure 1-22: Initial Test Hookup78
Figure 1-23: Measurement of Probe Compensator Frequency80
Figure 1-24: Subsequent Test Hookup81
Figure 1-25: Measurement of Probe Compensator Amplitude82
Option 05 Video Trigger Checks83
Figure 1-26: Jitter Test Hookup84
Figure 1-27: Jitter Test Displayed Waveform - TDS 684B Shown85
Figure 1-28: Jitter Test When Completed - TDS 684B Shown86
Figure 1-29: Triggered Signal Range Test - 300 MV88
Figure 1-30: Triggered Signal Range Test - 75 MV89
Figure 1-31: 60 Hz Rejection Test Hookup90
Figure 1-32: 60 Hz Rejection Test Setup Signal90
Sine Wave Generator Leveling Procedure100
Optical Filters Checks (TDS 500C/TDS 700C Only)103
Table 1-6: Available Filters103
Table 1-7: Reference Receiver Filter Options104
Table 1-8: Option 3C and 4C Specifications104
Table 1-9: Available Receivers104
Table 1-10: Bessel Thompson Frequency Response and Reference Receiver Limits112
Specifications115
Product Description117
Table 2-1: Key Features of the TDS 500C, 600B and 700C117
User Interface118
Signal Acquisition System119
Horizontal System119
Table 2-2: Record Length and Divisions Per Record Vs. TDS Model120
Trigger System121
Acquisition Control121
On-Board User Assistance122
Measurement Assistance122
Storage123
I/O123
Display124
Nominal Traits125
Table 2-3: Nominal Traits - Signal Acquisition System125
Table 2-4: Nominal Traits - Time Base System126
Table 2-5: Nominal Traits - Triggering System127
Table 2-6: Nominal Traits - Display System129
Table 2-7: Nominal Traits - GPIB Interface, Output Ports, and Power Fuse130
Table 2-8: Nominal Traits - Data Handling and Reliability130
Table 2-9: Nominal Traits - Mechanical131
Warranted Characteristics133
Table 2-10: Warranted Characteristics - Signal Acquisition System134
Table 2-11: Warranted Characteristics - Time Base System135
Table 2-12: Warranted Characteristics - Triggering System136
Table 2-13: Warranted Characteristics - Output Ports, Probe136
Table 2-14: Warranted Characteristics - Environmental138
Table 2-15: Certifications and Compliances140
Typical Characteristics141
Table 2-16: Typical Characteristics - Signal Acquisition System141
Table 2-17: Typical Characteristics - Triggering System144
