Performance Tests

TDS 500B, 600B and TDS 700A Service Manual

4–69

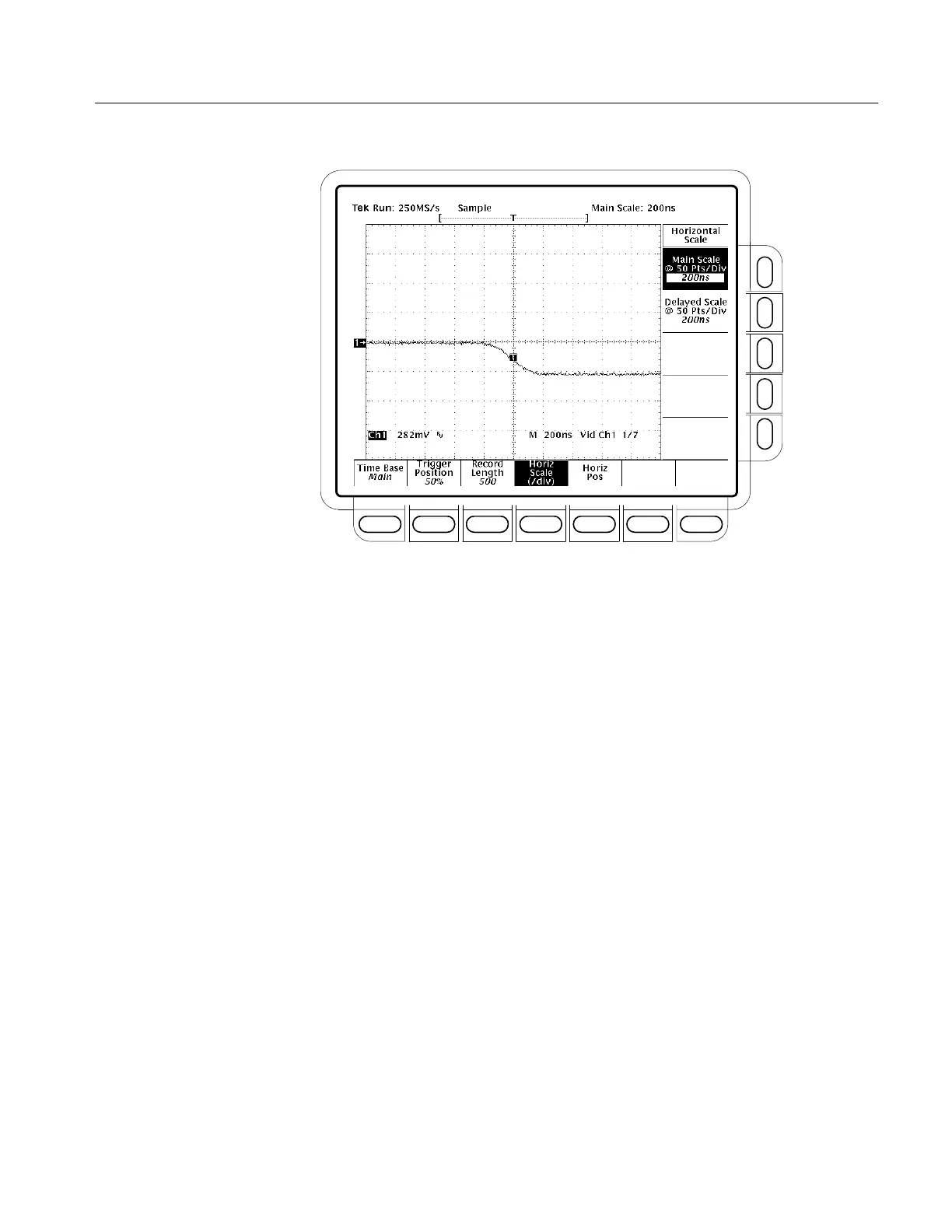

Figure 4–27: Jitter Test Displayed Waveform – TDS 684B Shown

c. Press SHIFT; then press ACQUIRE MENU.

d. Press the main-menu Mode.

e. Select the side-menu Average. It should be already set to 16.

f. Press the main-menu Create Limit Test Template.

g. Press the side-menu V Limit.

h. Use the keypad to set V Limit to 180 mdiv (press 180, SHIFT, m, then

ENTER)

i. Press the side-menu OK Store Template.

j. Press MORE.

k. Press the main-menu Ref1.

l. Press CH1.

m. Press SHIFT; then press ACQUIRE MENU.

n. Press the main-menu Limit Test Setup.

o. Toggle the side-menu Limit Test to ON.

p. Toggle the side-menu Ring Bell if Condition Met to ON.
