Installation

2–2

TDS 500B, 600B and TDS 700A Service Manual

Table 2–1: Power-Cord Conductor Identification

Conductor Color Alternate Color

Ungrounded (Line) Brown Black

Grounded (Neutral) Light Blue White

Grounded (Earthing) Green/Yellow Green

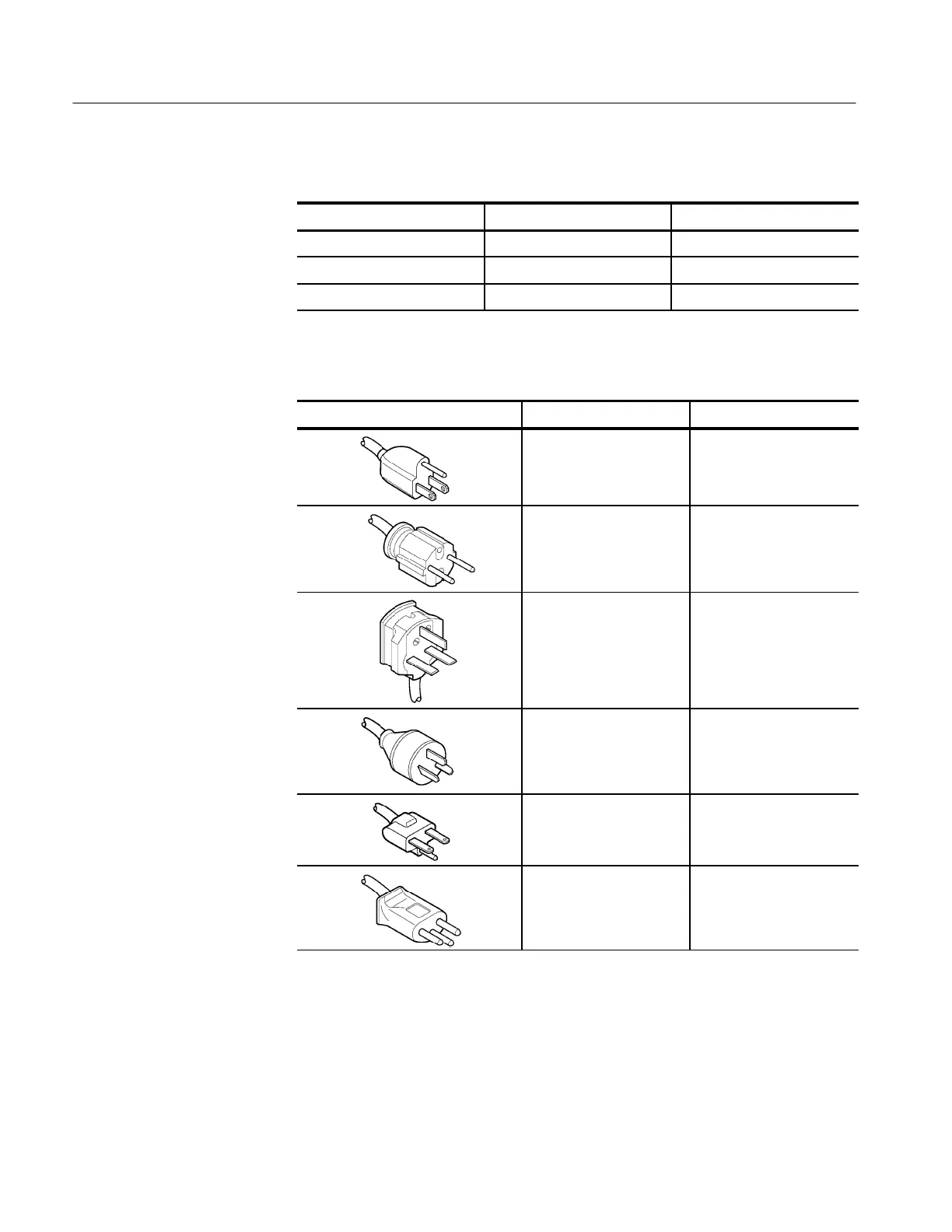

Table 2–2: Power Cord Identification

Plug Configuration Normal Usage Option Number

North America

125 V

Standard

Europe

230 V

United Kingdom

230 V

Australia

230 V

North America

230 V

Switzerland

230 V

This oscilloscope operates with any line voltage from 90–250 VAC

RMS

with any

line frequency from 45–440 Hz. There are two fuses, either of which may be

used throughout the line voltage and frequency ranges. (The two fuses are not

totally interchangeable as each requires a different fuse cap.)

Operating Voltage
