Performance Tests

4–74

TDS 500B, 600B and TDS 700A Service Manual

Digitizing Oscilloscope

50  Cable

Signal Generator

Output

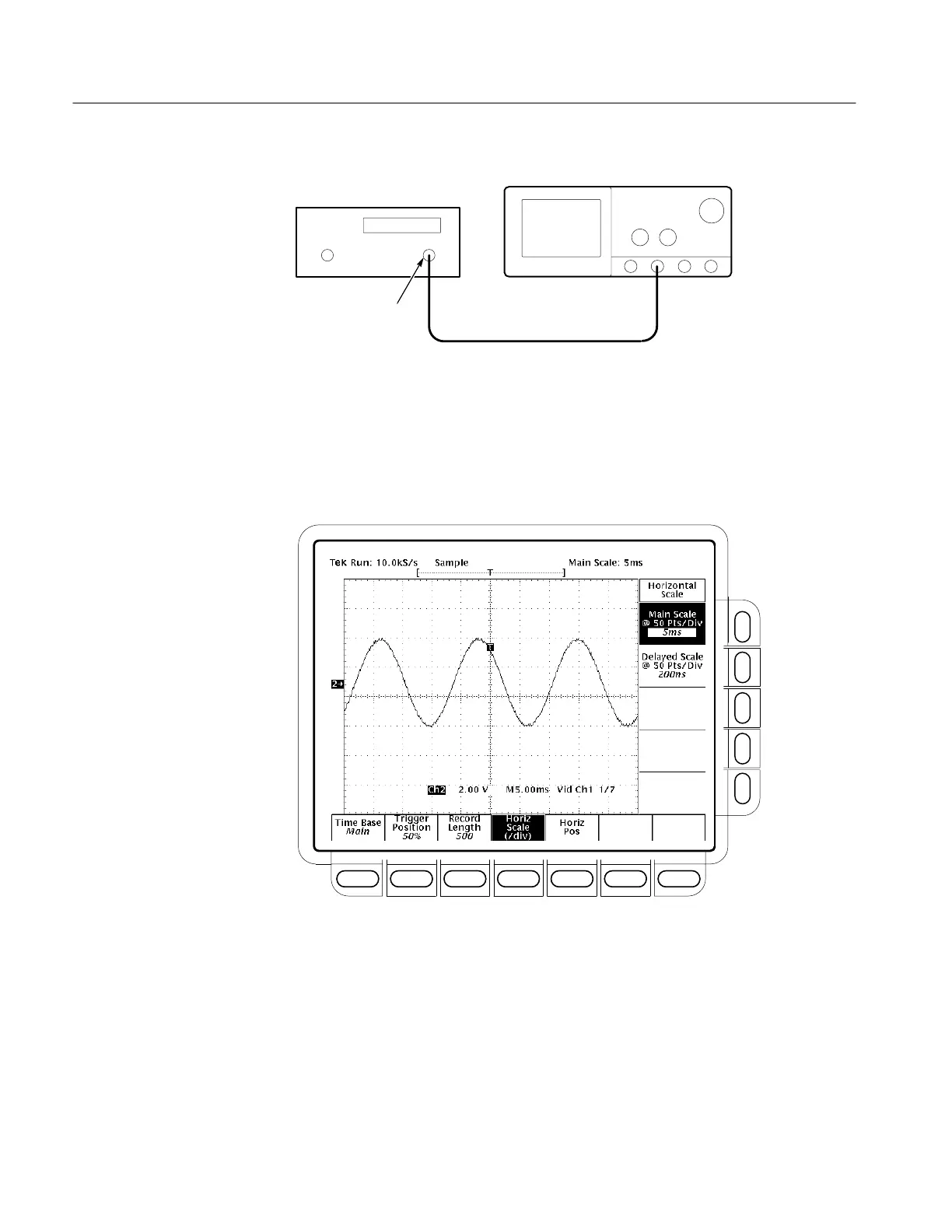

Figure 4–31: 60 Hz Rejection Test Hookup

H Adjust the signal generator for three vertical divisions of 60 Hz

signal. See Figure 4–32. The signal will not be triggered. That is, it

will run free.

Figure 4–32: 60 Hz Rejection Test Setup Signal

c. Check 60 Hz rejection.

H Use the keypad to set the horizontal scale (/div) to 50 ms (press 50,

SHIFT, m, then ENTER).

H Reconnect the output of the signal generator. Connect the composite

signal connector of the PAL signal source (labeled COMPST on the
