Acquiring and Displaying Waveforms
3–42
TDS 500D, TDS 600B, & TDS 700D User Manual

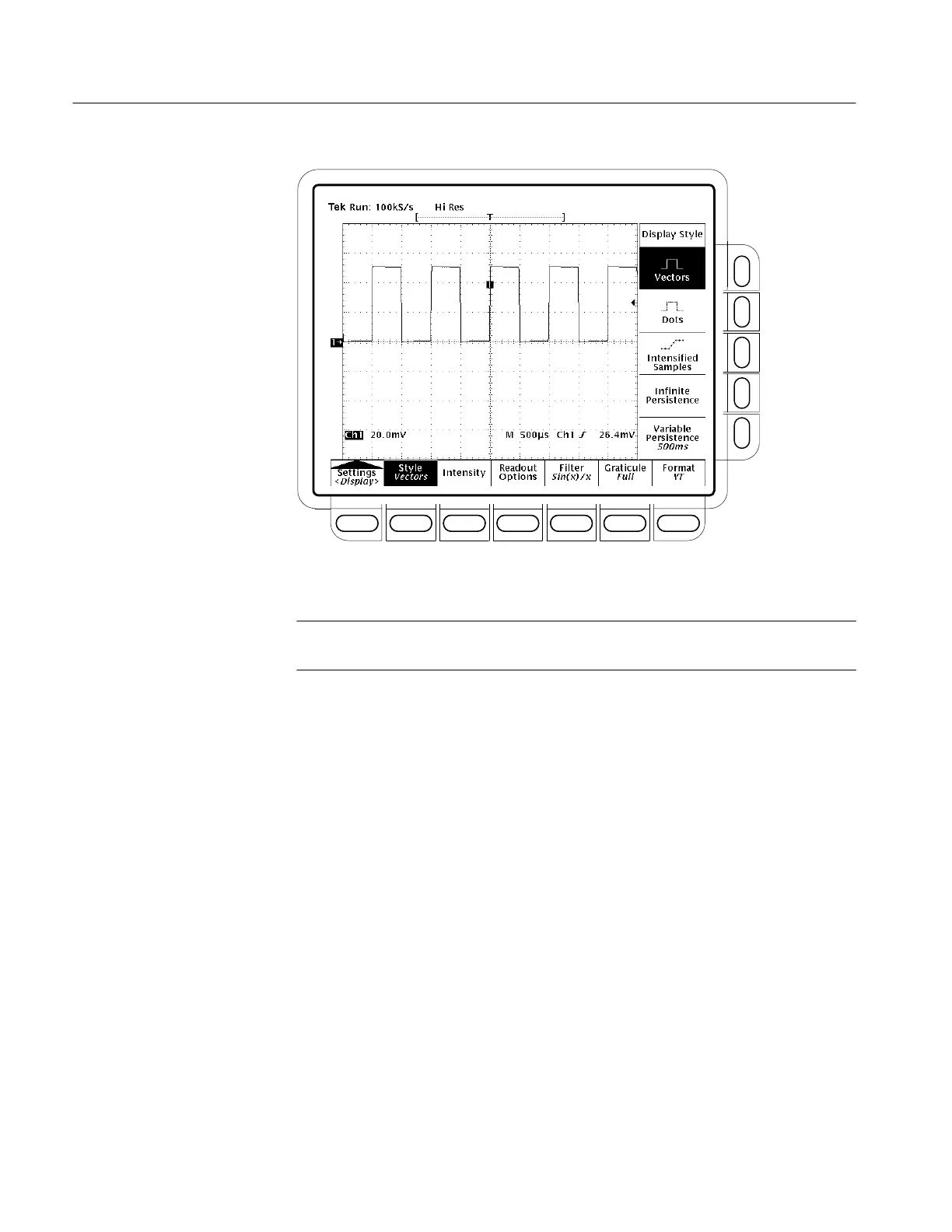

Figure 3–19: Display Menu — Style
NOTE. TDS 500D and TDS 700D models only: See Using DPO Acquisition
Mode, on page 3–59, to see how Style and Intensity setup differs for DPO mode.
Intensity lets you set text/graticule and waveform intensity (brightness) levels.
To set the intensity:
Press DISPLAY ➞ Settings (main) ➞ Display (pop-up) ➞ Intensity (main) ➞
Text/Grat or Waveform (side). Enter the intensity percentage values with the
keypad or the general purpose knob.
All intensity adjustments operate over a range from 20% (close to fully off) to
100% (fully bright).
Readout options control whether the trigger indicator, trigger level bar, and
current date and time appear on the display. The options also control what style
trigger level bar, long or short, is displayed.
Adjust Intensity
Set Display Readout
Options
