Acquiring and Displaying Waveforms
TDS 500D, TDS 600B, & TDS 700D User Manual
3–51

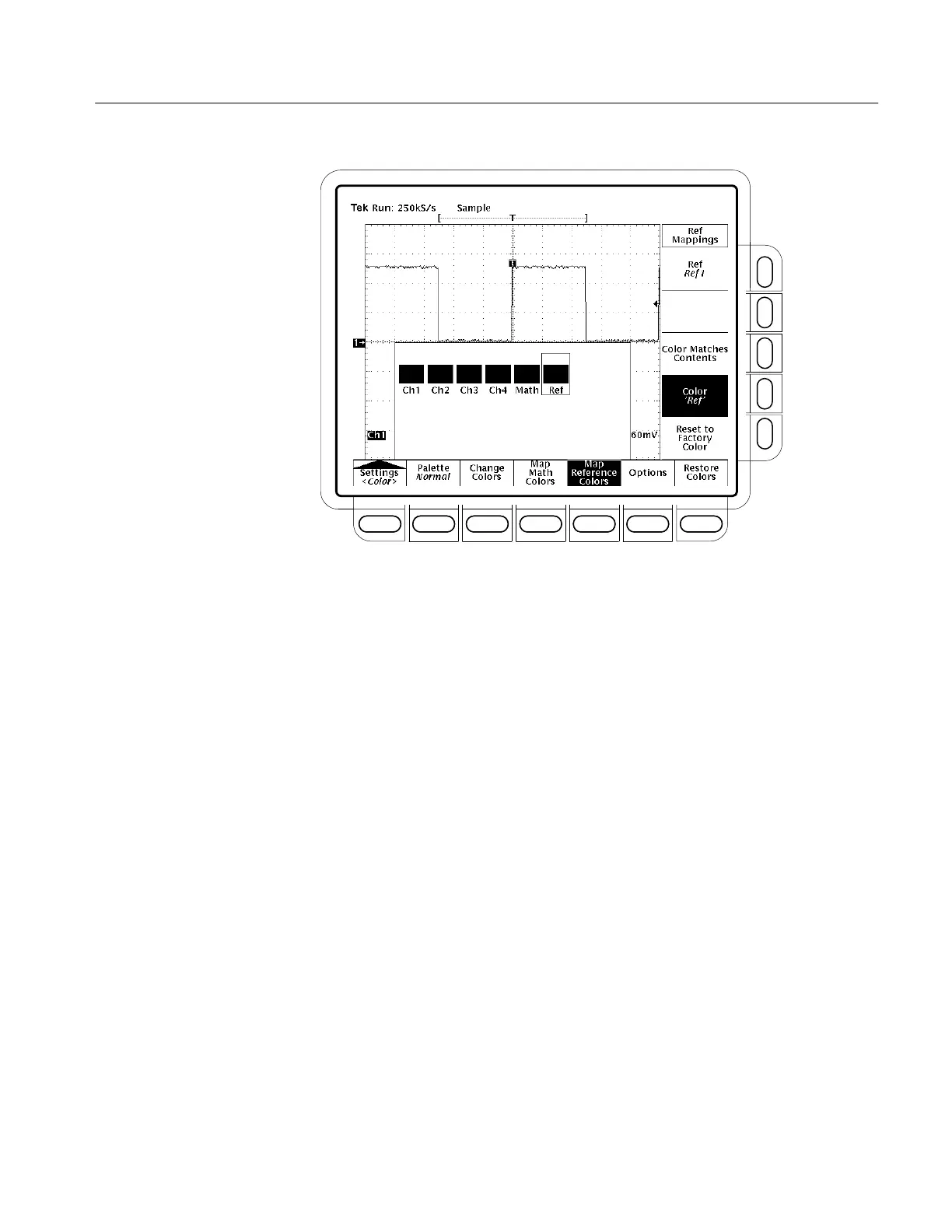

Figure 3–23: Display Menu — Map Reference Colors
To define what color to show where a waveform crosses another waveform:
1. TDS 600B models: Press the Options main menu item.
TDS 500D and TDS 700D models: Press the Options Restore main menu
item.
2. Toggle Collision Contrast to ON in the side menu to mark collision zones
with a special color.
To restore colors to their factory default settings:
1. TDS 600B models: Press the main menu Restore Colors item. (See
Figure 3–24.)
TDS 500D and TDS 700D models: Press the main menu Options Restore
item.
2. Select the object(s) you want to restore by pressing Reset Current Palette
To Factory, Reset All Palettes To Factory (Reset Palette on monochrome
oscilloscopes), or Reset All Mappings To Factory in the side menu.
Select Options
Restore Colors
To Next Page
