Maintenance
TDS1000 and TDS2000 Series Digital Storage Oscilloscopes Service Manual
6-- 21
You will need a torque-limiting Torx T-15 screwdriver and pliers for this
procedure.
Removal. To remove the front-panel cable, refer to Figure 6--12 and follow these
steps:
1. Remove the power button and rear case using the procedures on page 6--10.
2. Untwist the cable tie to release the front-panel cable.
3. Disconnect the front-panel cable at J202 on the main board by pulling
straight up from the connector.
4. Disconnect the front-panel cable at J1 on the front-panel module.
Front-panel cable
Main board
J202
Front-panel
module J1

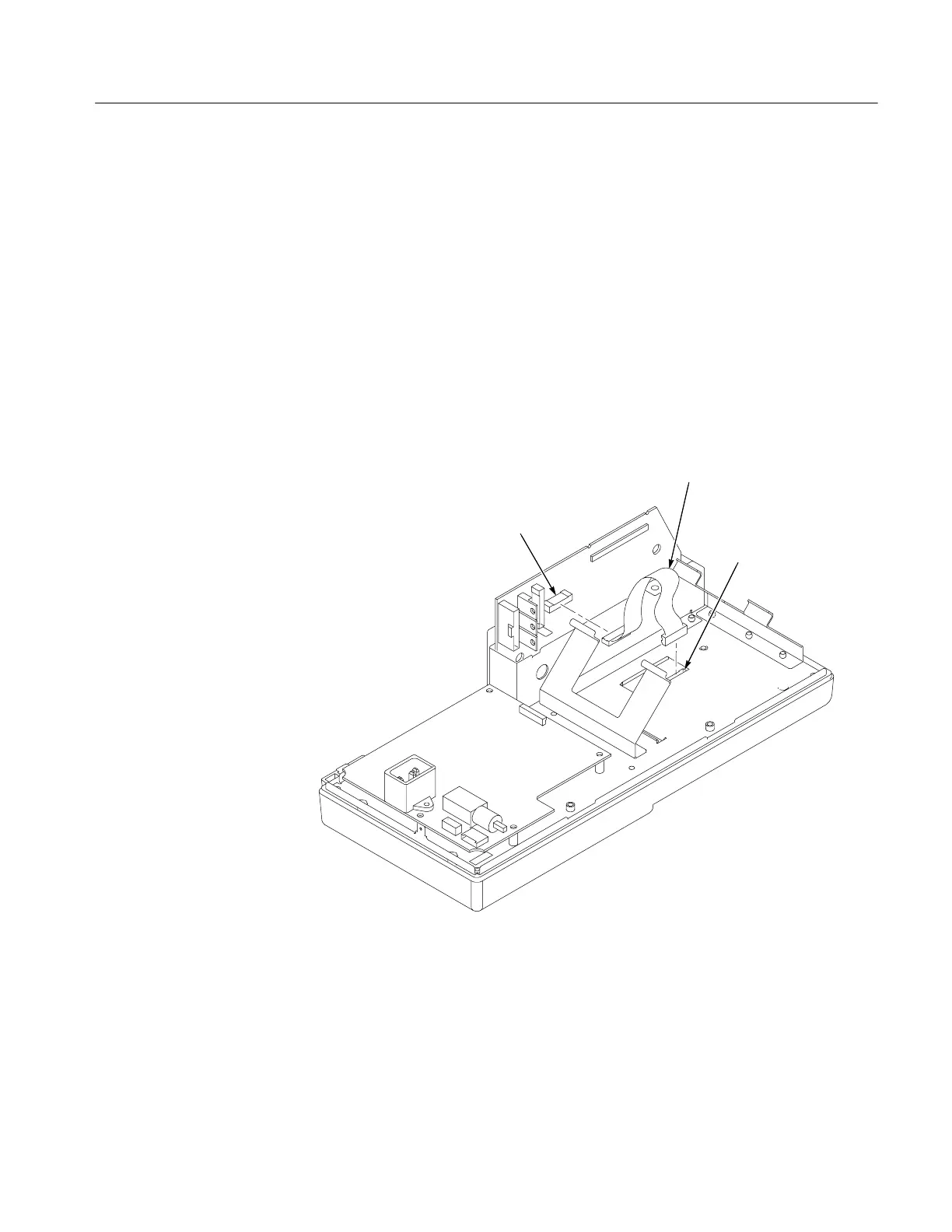

Figure 6--12: Removing and installing the front-panel cable
Front-Panel Cable

Tektronix TDS1002 Specifications

General

Bandwidth	60 MHz
Channels	2
Sample Rate	1 GS/s
Record Length	2.5k points
Vertical Sensitivity	2 mV/div to 5 V/div
Vertical Resolution	8 bits
Display Resolution	320 x 240 pixels
Display	5.7 inch monochrome LCD
Trigger Modes	Video, Edge
Connectivity	USB 2.0
Weight	2.0 kg
Input Impedance	1 MΩ
Power Supply	100 to 240 VAC, 45 to 440 Hz
