Tektronix TDS1002 Manual

Maintenance
6-- 14
TDS1000 and TDS2000 Series Digital Storage Oscilloscopes Service Manual
You will need a torque-limiting Torx T-15 screwdriver and pliers for this
procedure.
Removal. First, remove the power button and rear case using the procedures on
page 6--10. Then, slide the front feet out of the front case as shown in Figure 6--6.
Installation. Slide the feet into the slots provided in the front case as shown in
Figure 6--6. Use the installation procedures for each module removed to
reassemble the oscilloscope.

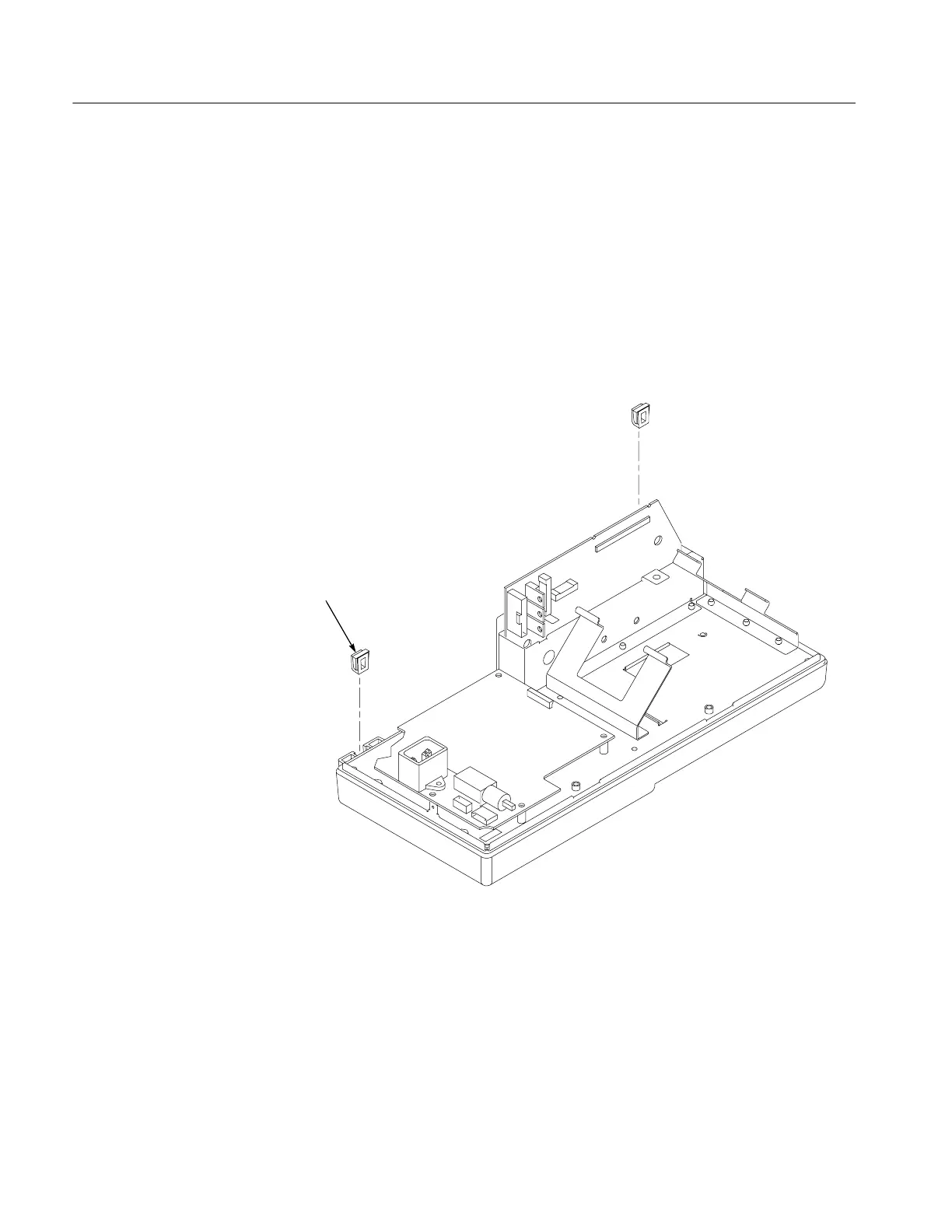

Front foot
Figure 6--6: Removing and installing the front feet
Front Feet

Tektronix TDS1002 Specifications

General

Bandwidth	60 MHz
Channels	2
Sample Rate	1 GS/s
Record Length	2.5k points
Vertical Sensitivity	2 mV/div to 5 V/div
Vertical Resolution	8 bits
Display Resolution	320 x 240 pixels
Display	5.7 inch monochrome LCD
Trigger Modes	Video, Edge
Connectivity	USB 2.0
Weight	2.0 kg
Input Impedance	1 MΩ
Power Supply	100 to 240 VAC, 45 to 440 Hz
