Operating Information
2-- 4
TDS1000 and TDS2000 Series Digital Storage Oscilloscopes Service Manual
Installation
Use only power cords designed for your oscilloscope. Use a power source that
delivers 90 to 264 VAC
RMS
, 45 to 66 Hz. If you have a 400 Hz power source, it
must deliver 90 to 132 VAC
RMS
, 360 to 440 Hz.
Refertopage8--8intheReplaceable Parts chapter for a list of power cords
available from Tektronix. All power cords must be rated for > 3 Amps, 3 wire,
and have an 18 AWG (1.0 mm) Safety Ground lead, or larger.
Securing cable
Power cable

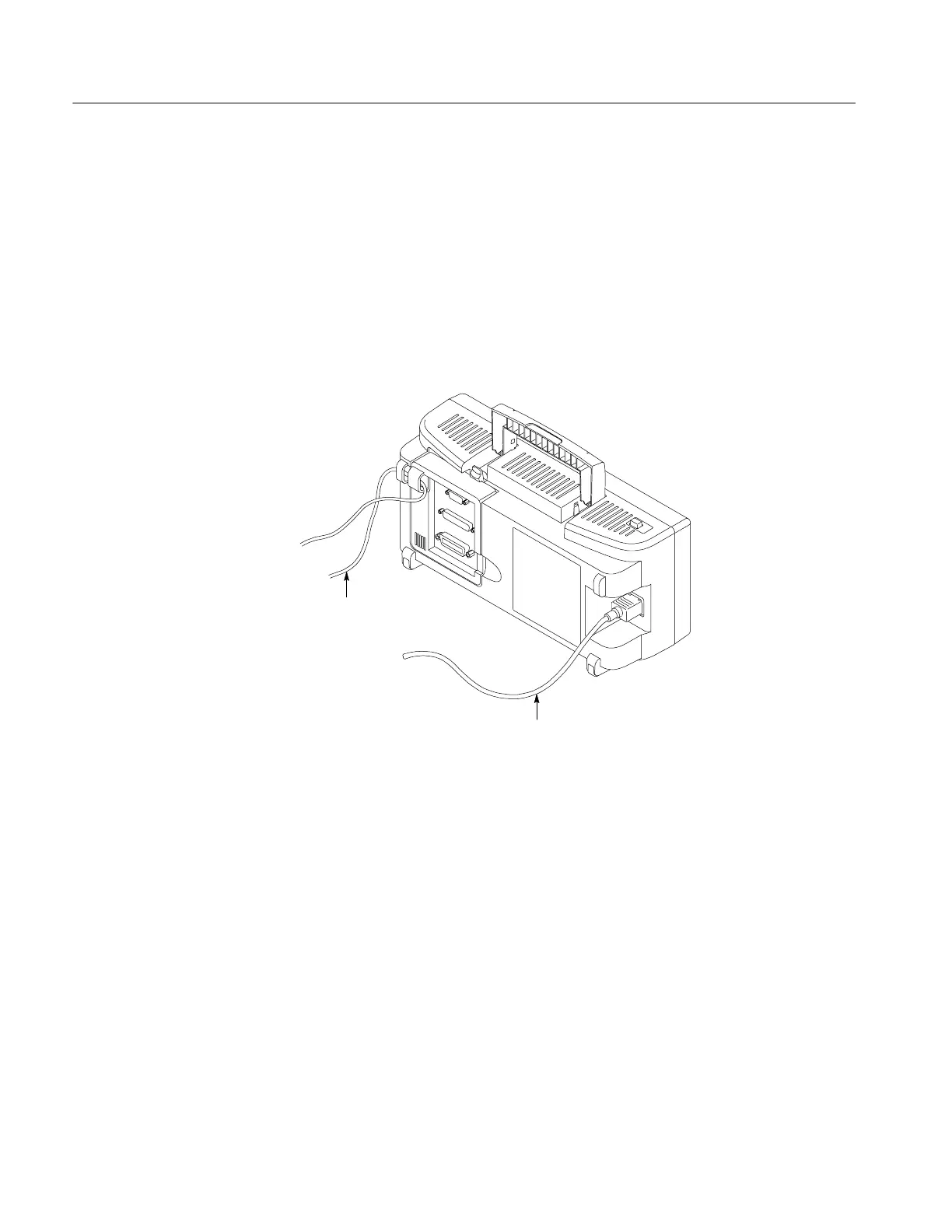

Figure 2--1: Routing the power cord and security cable
Use the built-in cable channels to secure both your oscilloscope and extension
module to your location.
Power Cord
Security Loop

Tektronix TDS1002 Specifications

General

Bandwidth	60 MHz
Channels	2
Sample Rate	1 GS/s
Record Length	2.5k points
Vertical Sensitivity	2 mV/div to 5 V/div
Vertical Resolution	8 bits
Display Resolution	320 x 240 pixels
Display	5.7 inch monochrome LCD
Trigger Modes	Video, Edge
Connectivity	USB 2.0
Weight	2.0 kg
Input Impedance	1 MΩ
Power Supply	100 to 240 VAC, 45 to 440 Hz
