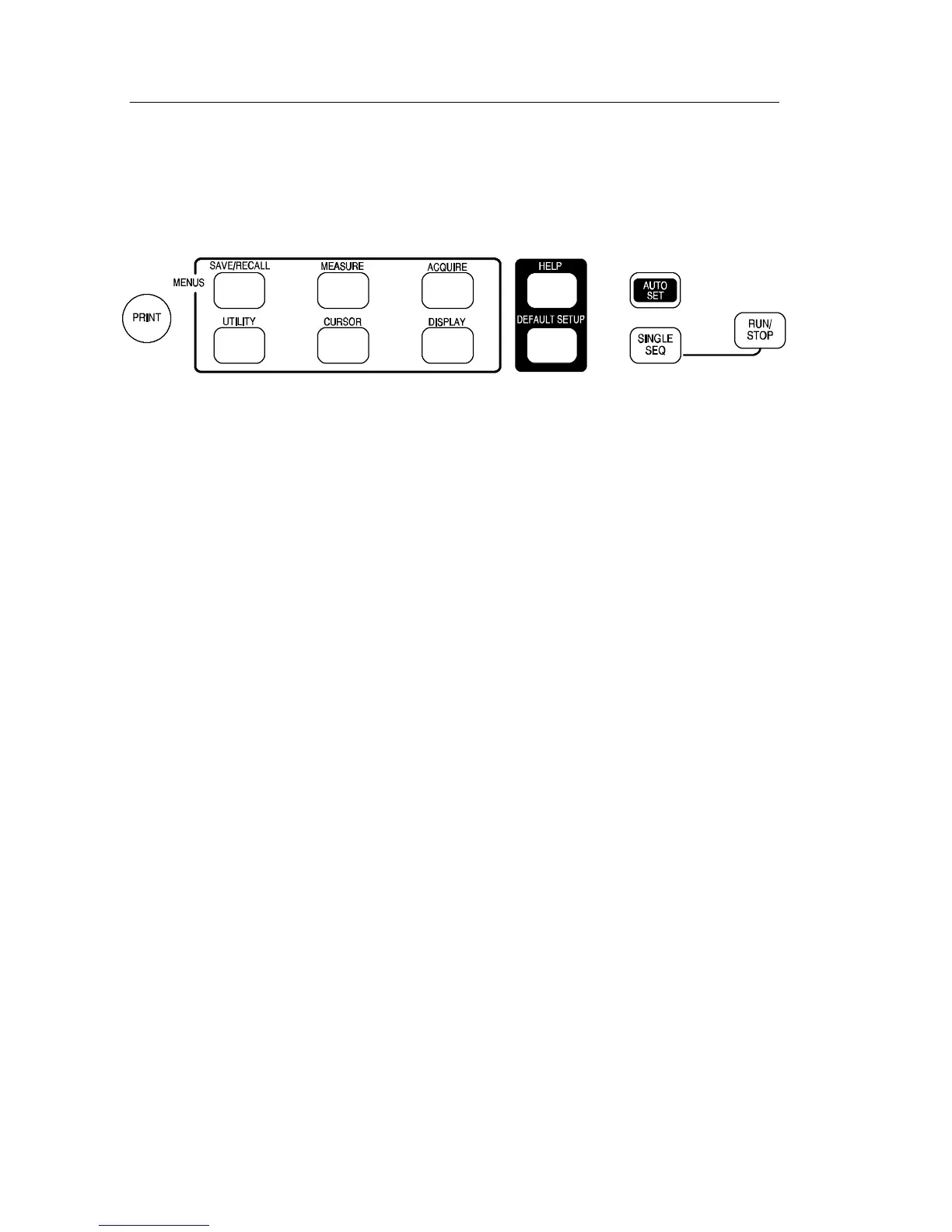

Tektronix TDS2002

Performance Verification
4-2
TDS1000 and TDS2000 S eries Digital Storage Oscilloscopes Service Manual
Test Record
Serial
number
Procedure performed by Date
Test Passed Failed
Self Test
Oscilloscope tests Low limit Test result High limit
Channel 1 DC Gain Accuracy 5mV/div 33.6 mV 36.4 mV
200 mV/div 1.358 V 1.442 V
2V/div 13.58 V 14.42 V
Channel 2 DC Gain Accuracy 5mV/div 33.6 mV 36.4 mV
200 mV/div 1.358 V 1.442 V
2V/div 13.58 V 14.42 V
Channel 3 DC Gain Accuracy
1
5mV/div 33.6 mV 36.4 mV
200 mV/div 1.358 V 1.442 V
2V/div 13.58 V 14.42 V
Channel 4 DC Gain Accuracy
1
5mV/div 33.6 mV 36.4 mV
200 mV/div 1.358 V 1.442 V
2V/div 13.58 V 14.42 V
Channel 1 Bandwidth 2.12 V —
Channel 2 Bandwidth 2.12 V —
Channel 3 Bandwidth
1
2.12 V —
Channel 4 Bandwidth
1
2.12 V —
Sample Rate and Delay Time Accuracy -- 2 d i v s +2 divs
Channel 1 Edge Trigger Sensitivity Stable trigger —
Channel 2 Edge Trigger Sensitivity Stable trigger —
Channel 3 Edge Trigger Sensitivity
1
Stable trigger —
Channel 4 Edge Trigger Sensitivity
1
Stable trigger —
External Edge Trigger Sensitivity Stable trigger —
1
Channels 3 and 4 are only on four channel oscilloscopes.
