Getting Acquain
ted with Your Instrument
2. If you will be making H Sync, V Sync, or
V Timing measurements, you will need
to make 2.21 kΩ
and 301 Ω terminations
using the B NC-to-Binding Post adapters
and resistors supplied as standard
accessories.
Attach each resistor to an
adapter as shown.

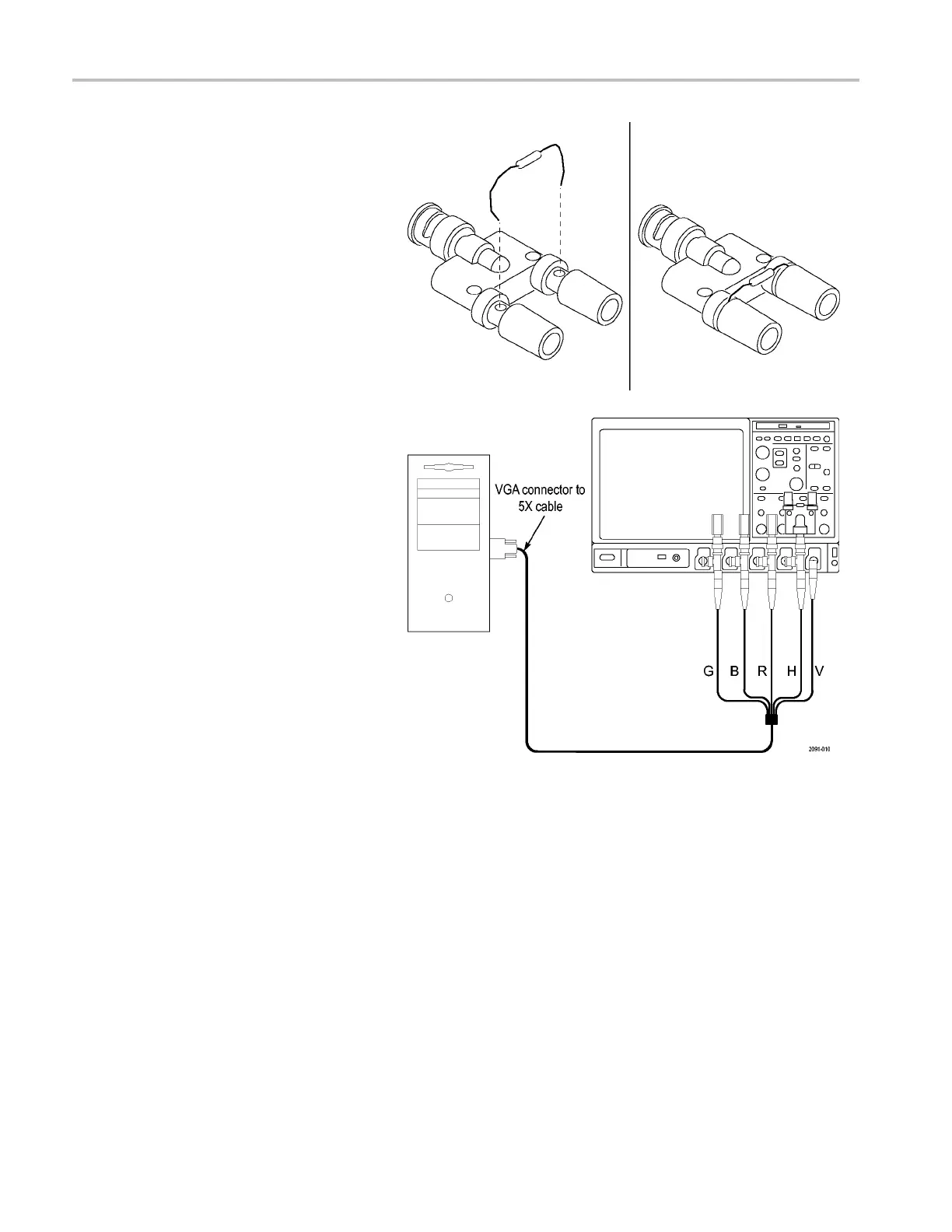

3. Connect the VGA signals to the VM
Series system as shown. Connect
the H Sync signal using the 2.21 kΩ
termination to begin with. The VM Series
system will prompt you to change it to
the 301 Ω termination as necessary.
VM6000 / DPO7000 Series Instrument
18 VM Series Video Measurement System Quick Start User Manual
