Applications

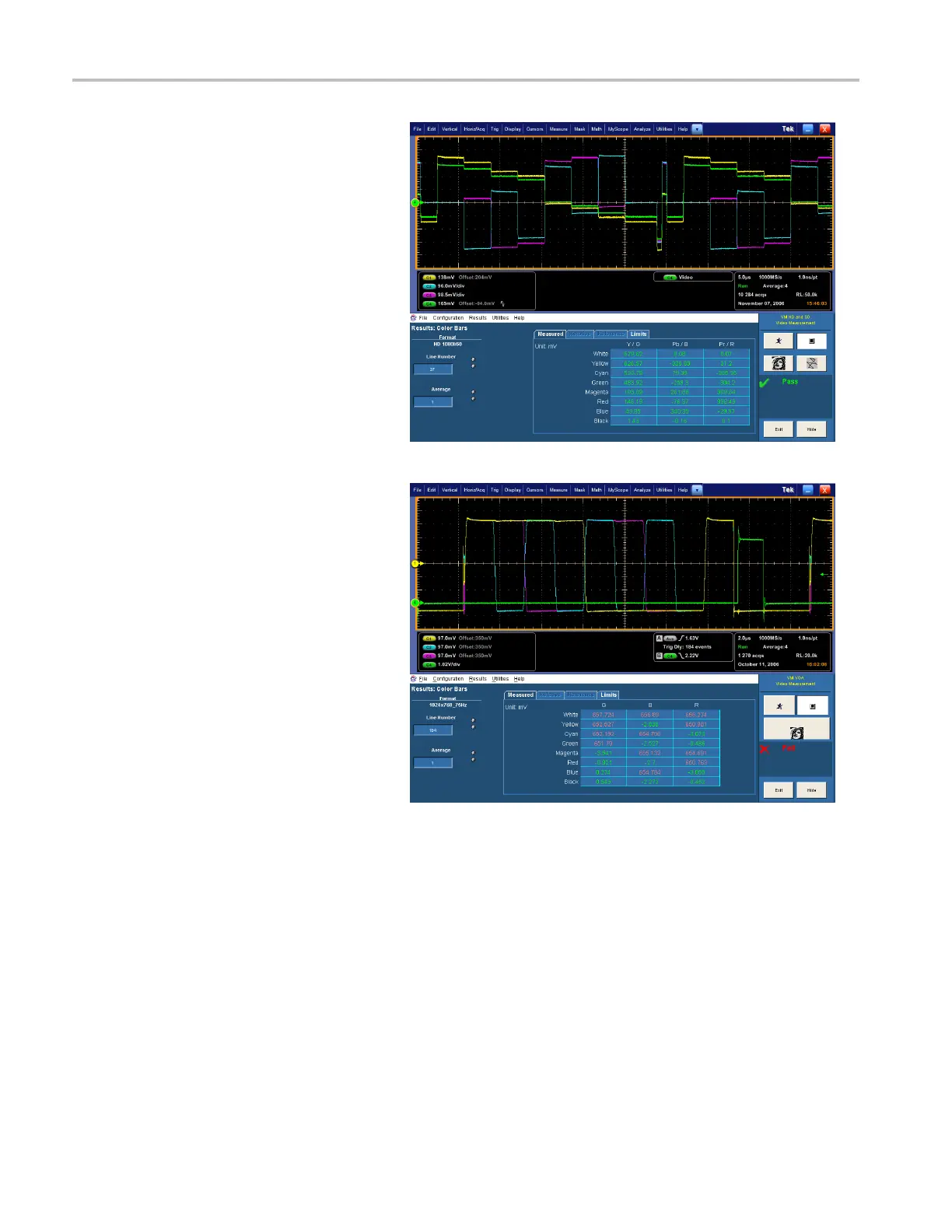

When the measur
ements are complete,
the results screen is displayed. Note that
the Limits tab is now selectable.
When limit test
ing is enabled, results
are displayed in either green or red text.
Green text indicates pass (the measured
value did not e
xceed the limit values).
Red text indicates failure (the measured
value exceeded the max or min limit
value).
Option SD/HD
Option VGA
62 VM Series Video Measurement System Quick Start User Manual
