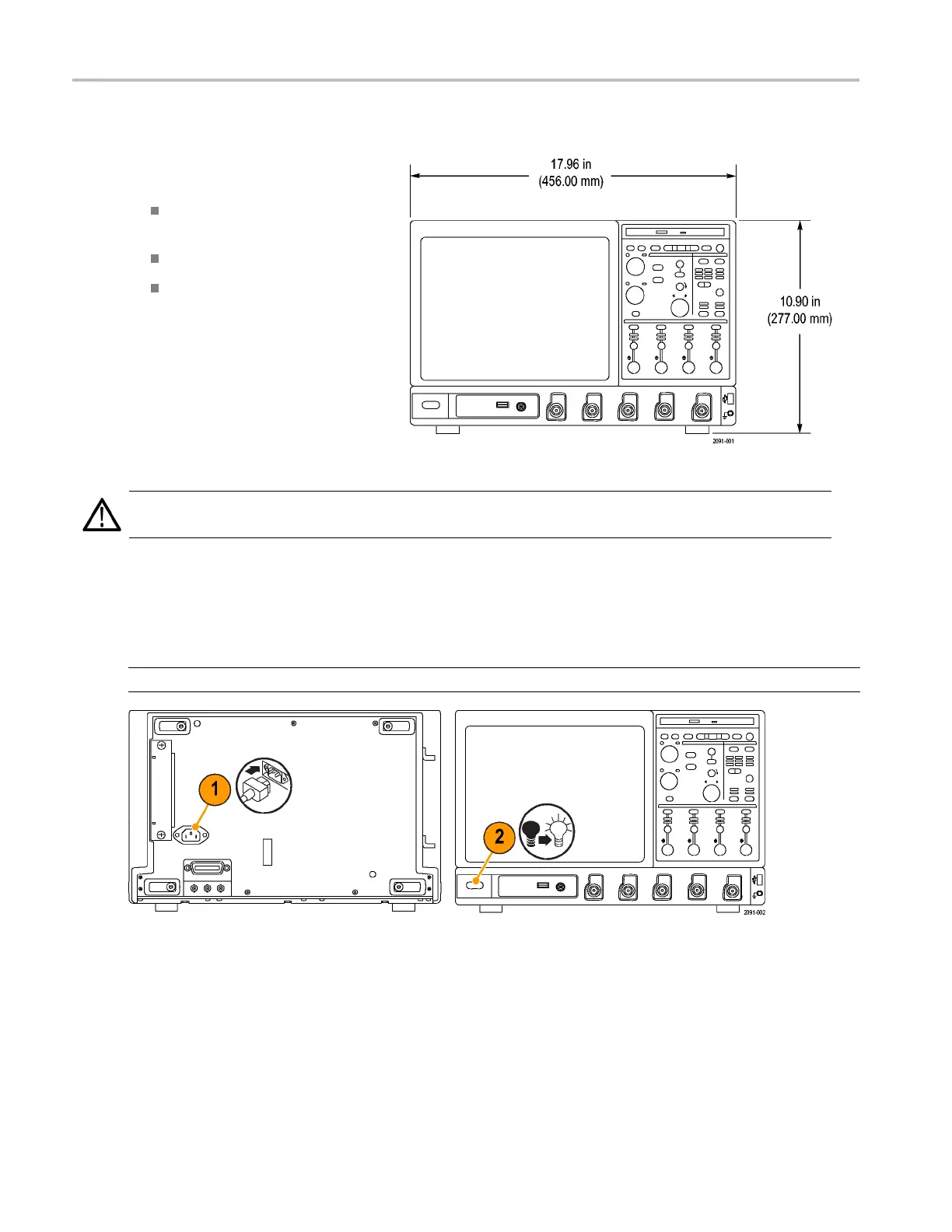

Installing Your
Instrument
Operating Requirements
1. Place the instrument on a cart or bench,
observing cle
arance requirements:
Top, Rear, Fro
nt, and Right Side: 0 i n
(0 mm)
Left Side: 3 in (76 mm)
Bottom: 0.75 in (19 mm) minimum
or 0 in (0 mm) standing on feet, ip
stand down
2. Before opera
ting, ensure that the
ambient temperature is between +41 °F
and +113 °F (+5 °C to +45 °C).
CAUTION. To ensure proper cooling, keep the bottom and sides of the instrument clear of obstructions.
Powering On the Instrument
Power Supply Requirements
Source voltage and frequency Power consumption
100-240 V
RMS
±10%, 47-63 Hz or 115 V
RMS
±10%, 400 Hz
550 watts maximum
4 VM Series Video Measurement System Quick Start User Manual
