Getting Acquain
tedwithYourInstrument

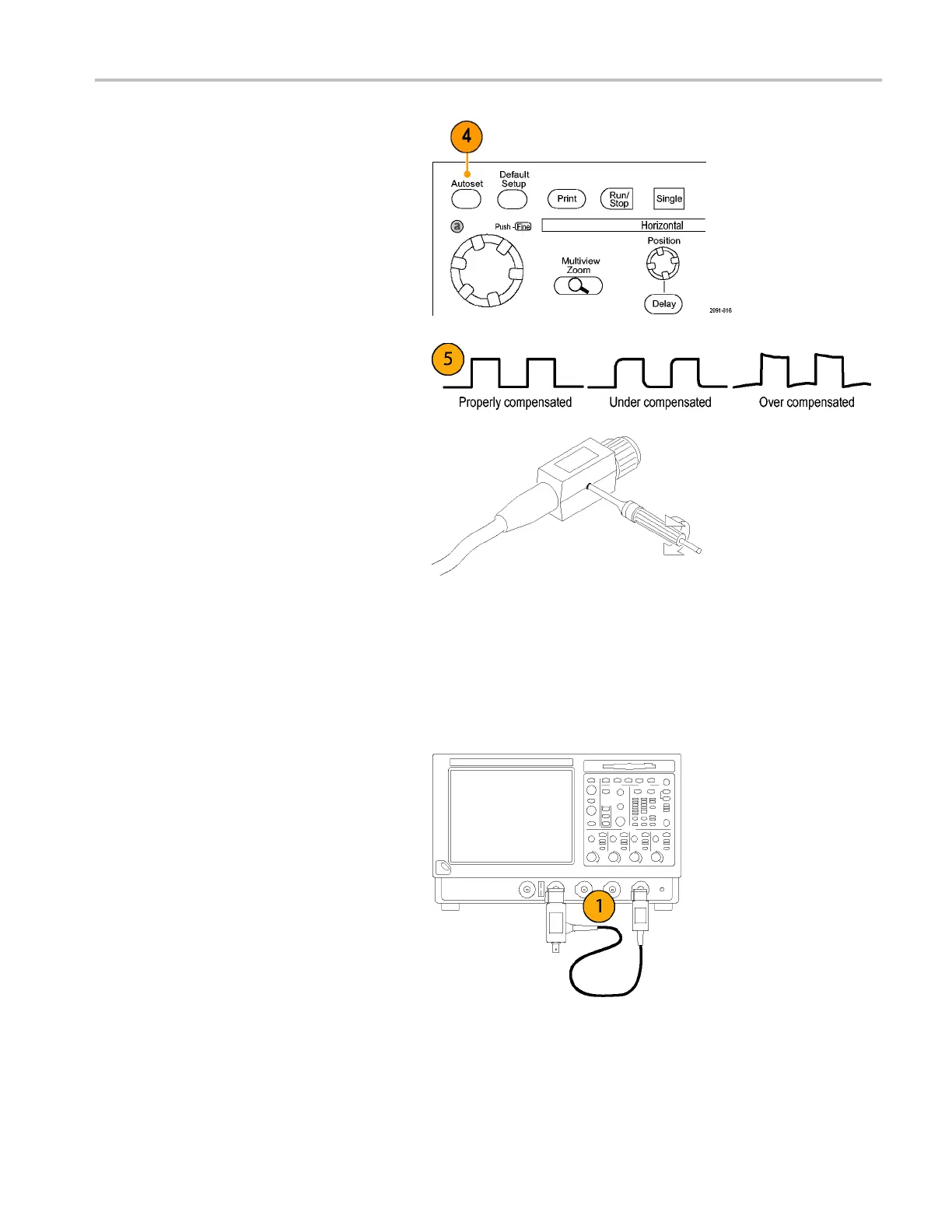

4. Push AUTOSET.
5. Check the shape of the displayed
waveform to determine if the Sync
Pickoff is compensated correctly.
6. If necessary, adjust the Sync Pickoff.
Repeat as needed.
Sync Pickoff Compensation – VM5000 and TDS5000 Series, Options SD/HD
Only
To prope
rly compensate the Sync Pickoff:
1. Connect
theSyncPickoffcabletoCH1
and CH4. The small housing, labeled
“Connect to Trigger Channel”, should be
connec
ted to CH4.
VM Series Video Measurement System Quick Start User Manual 21
