Applications
Option VGA

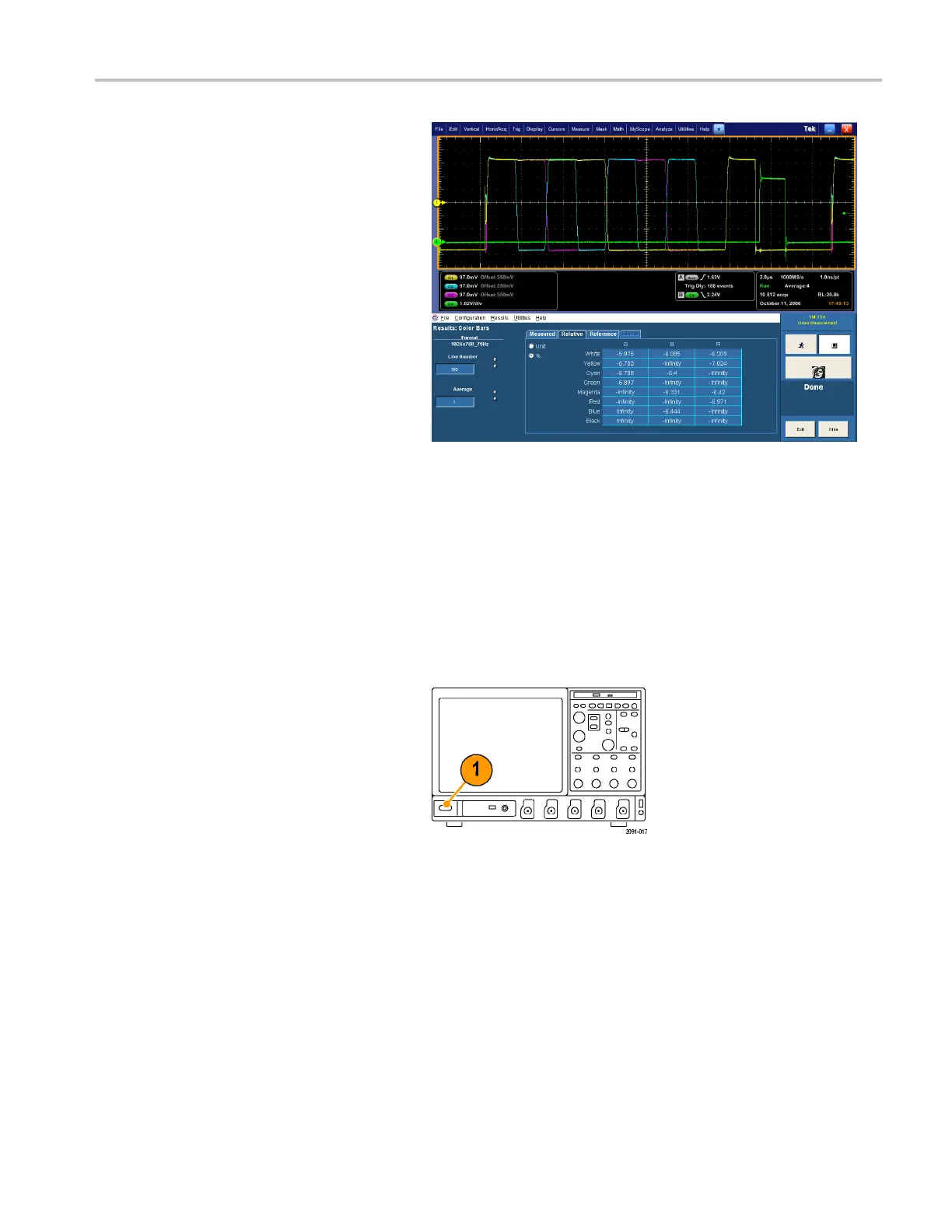

Displaying Color Bar Measurements with Limit Testing
The VM Series system can display measurement results compared to a limit value and with a pass/fail indication. As with
the relative m easurements, the limit value is s pecied in a CSV-format text le. The VM Series system includes a set of
template les that y ou can edit, so that you can specify the limit values appropriate to your application. Limit values consist of
a maximum and minimum. Measured values that fall between the maximum and minimum limit values are considered to
have passed the limit test. Measured values that fall outside the m aximum and minimum limit values are considered to
have failed the limit test.
1. Power on the instrument.
VM Series Video Measurement System Quick Start User Manual 59
